8 Channel HEVC SDI Video Encoder EC8 hardware support H.264 live streaming Push and pull

EC8 SDI Video Encoder is an advanced multichannel hardware video encoder that fully developed by JLonvision, it allows to encoding 8 channel 1920* 1080P 60 FPS, Also It supports H.265 H.264 encoding standard and transport protocols RTMP,http,rtsp,rtp,udp etc.

    Category:

    Description

    EC8 SDI Video Encoder is a 8 channels high-definition SDI audio and video encoder. developed and manufactured independently by JLONvision,It applies H.265 and H.264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 8 channel of 1080P 60fps H.265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H.264 encoding algorithm, EC8 H 265 hardware encoder can save 30-50% of transmission bandwidth and storage space at the same video quality.It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

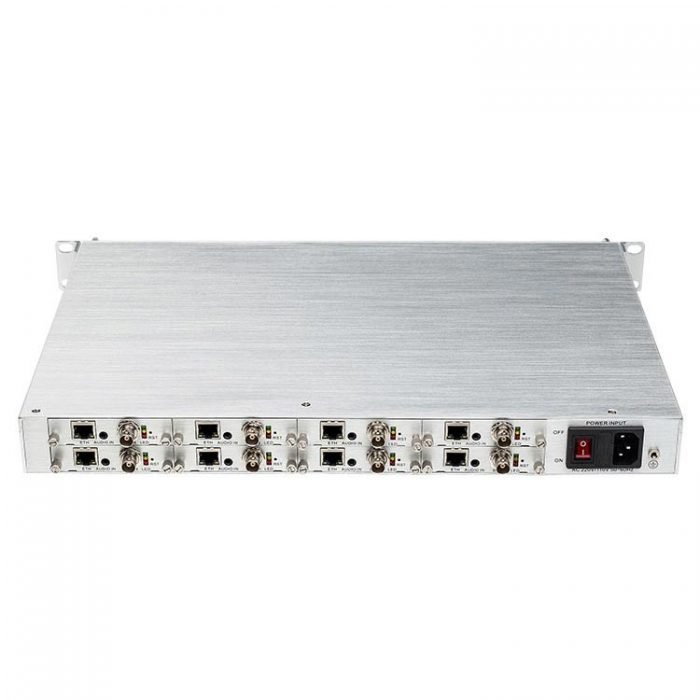

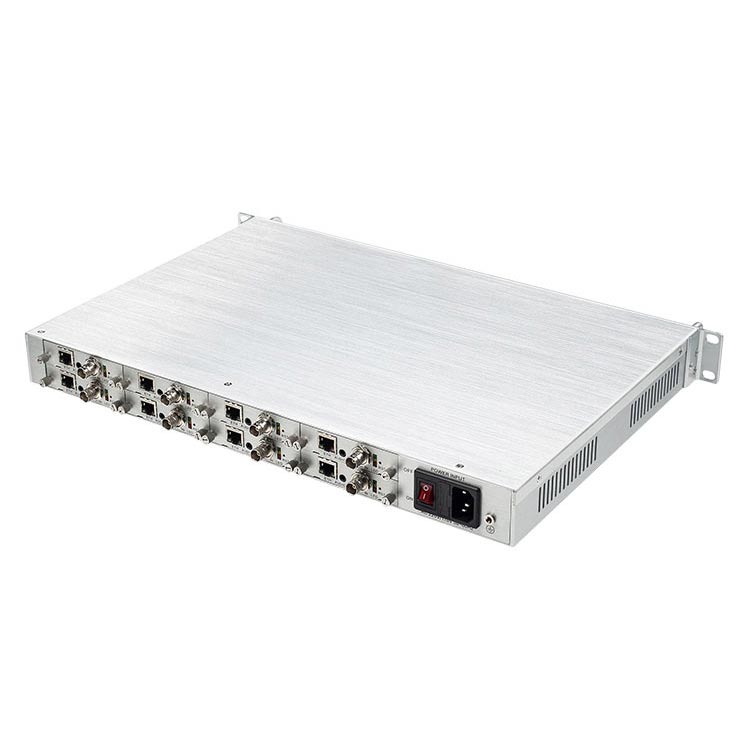

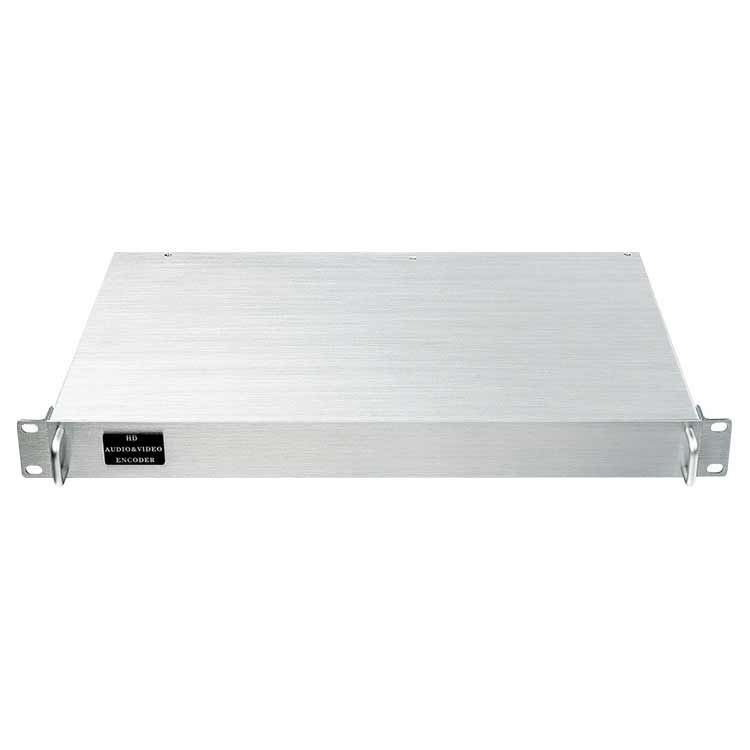

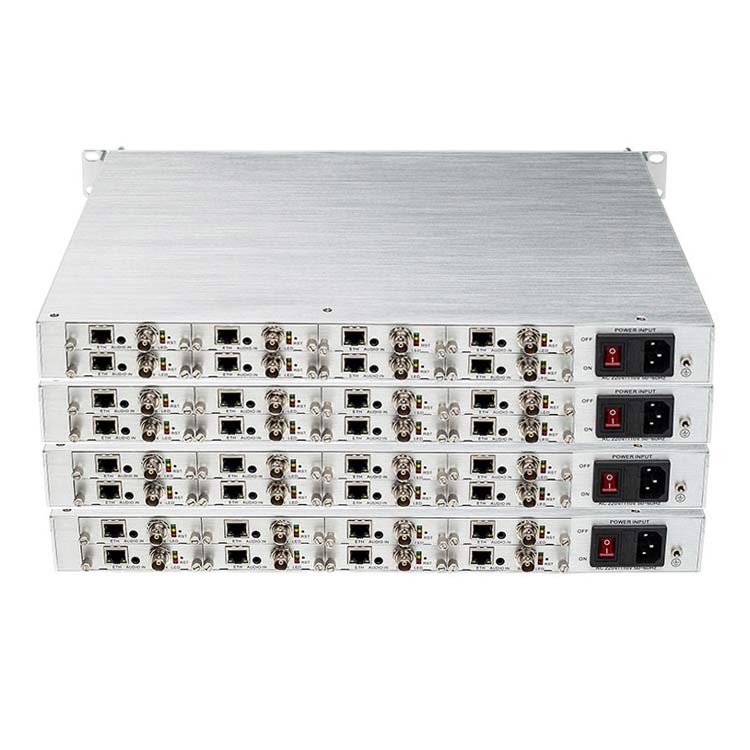

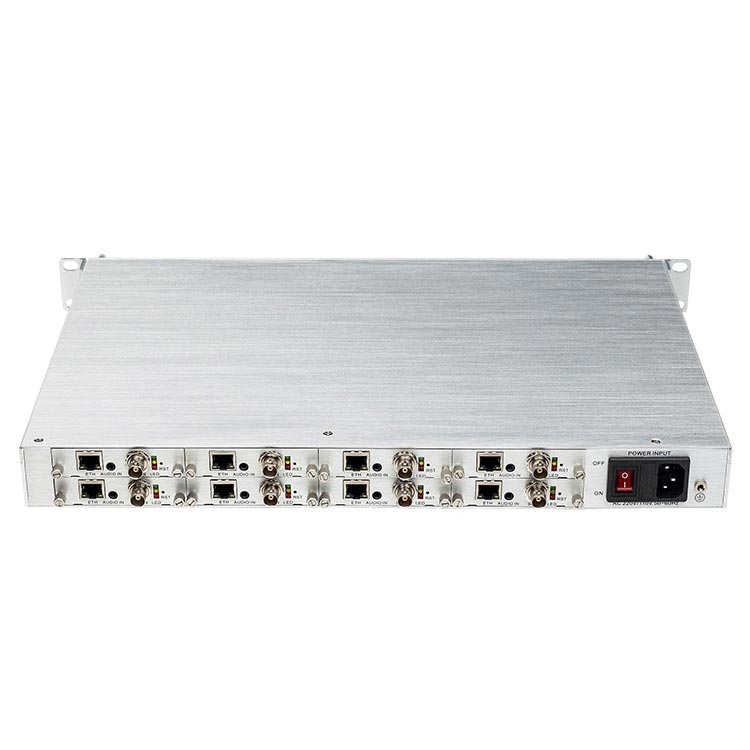

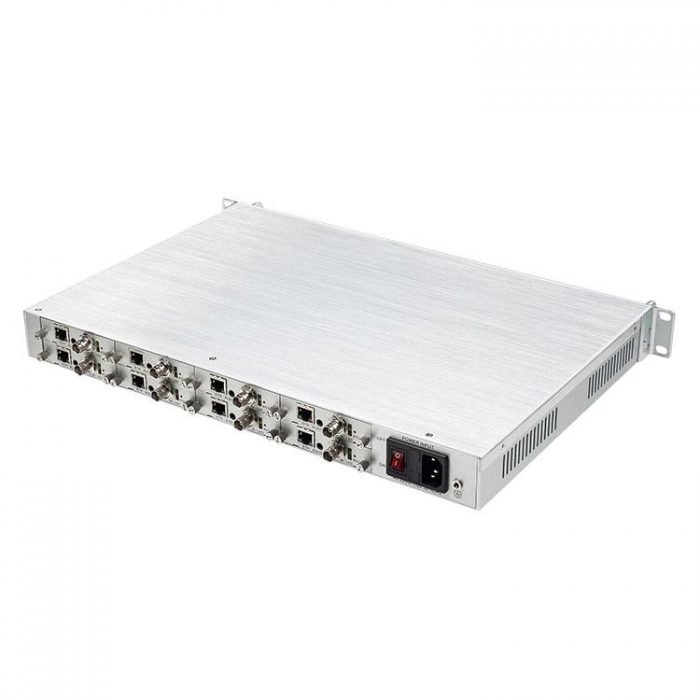

    EC8 SDI Video Encoder uses 2U rack design, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on B,S configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.
    EC8 SDI Video Encoder supported audio encoding formats are AAC, MP3, Support live stream protocol HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    Technical Features

    • Embedded hardware encoder
    • H.265,H.264 Mainprofile
    • Video input format: 1080P 60fps,1080I,1280×720,720x576P,720x576I,720×480,640x480I
    • Support stereo audio input for 8 channels
    • Audio output format :AAC,MP3
    • Output resolution:1080P 60fps,1080I,1280×720,720x576P,720x576I,720×480,640x480I
    • Support CBR,VBR
    • Highest code rate 12Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • EC8 SDI Video Encoder can use space pre-treatment and block filtering technology for moving scenes
    • EC8 support wide area network remote management (WEB)
    • Support a variety of common platforms at home and abroad such as Wowza, FMS, youtube,facebook,NJ ,Darwin Server and so on

     Topology diagram of the overall scheme

     Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 8*1080P 60fps of image effect is more exquisite
    • Strong system stability
    • Low power supply design
    • Multi-media platforms

    Software configuration picture

    Technical specification table

    Product Parameter
    Video parameter Input interface: 8xSDI Maximum 1080P 60fps

    Resolution: 1920x1080P/1920x1080i/1280x720p/720x576i/720x576P /640x480i

    Coded format:  H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile H.265 Main 10 profile

    Coding resolution Main: 1920x1080P/1920x1080i/1280x720p/720x576i/720x576P /640x480i

    Frame rate:30-60 fps adjustable

    Maximum rate:12Mbps

    Rate control :CBR,VBR

    Audio parameters Input interface:8×3.5mm

    Stereo Sampling rate:48K,44.1K,32K

    Coded format:AAC,MP3

    Audio bit rate:64Kb/s-384Kb/s

    Network Parameters Lan interface: 8x100M/1000M RJ45 adaptive ethernet port,TS standard stream,dual-stream,ONVIF

    Transport protocols :RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast ONVIF:positive

    Basic parameter Power supply :AC 110V-220V

    Power dissipation:<40W

    Operating temperature:-20℃- +60℃

    Operating humidity:<90%,No condensation

    Size: 300x440x43 (mm)

    Weight:4KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Digital TV Broadcasting System , IPTV & OTT system , Internet TV , Digital Signage Project , Remote Video Conference
      Video Monitoring , Live Streaming , Digital TV Broadcasting System , Digital TV Programs Transmission
      Hotel IPTV System , Head-end system of Digital TV branch network , CATV Broadcasting system
      Edge side of Digital TV backbone network
