4K H 265 hardware encoder and h 265 codec is ENC2 live streaming broadcast football and game for 4K hevc video encoder

ENC2 4K H 265 hardware encoder and h 265 codec which is studied, It is a 2 channel of 4K 30fps h.265 embedded video and audio hardware encoder. 4k h 265 hardware encoders use independent SOC chips to encode and push video and audio signals, the ENC2 h 265 codec encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider, please check Chip algorithm evaluation.

    Description

    Explain the importance of encoder in IPTV solution, the core of streaming video and audio encoders is to provide high quality and stable live streaming, then send it to the streaming service for distribution, and finally the client accesses the streaming server to watch the program. Because it is a very important source in the whole scheme, it is necessary to analyze the streaming media video and audio encoders.

    1.4k h 265 hardware encoders use independent SOC chips to encode and push video and audio signals, the ENC2 h 265 codec encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider, please check Chip algorithm evaluation. (I recommend ENC2 4K hevc video encoder,As shown in figure 3.1)

    2.The software encoder adopts the combination of video and audio acquisition card and computer, video and audio signals are encoded and pushed by computer software. 10 years ago, our client would build such a system, but now it is basically on the verge of obsoletion. The advantage of this system is that video has good quality with low code rate and flexible extension function, but running on high code rate or H 265 coding algorithm requires a lot of computer configuration requirements, and it is very unstable to use Windows operating system at the same time.(As shown in figure 3.2)

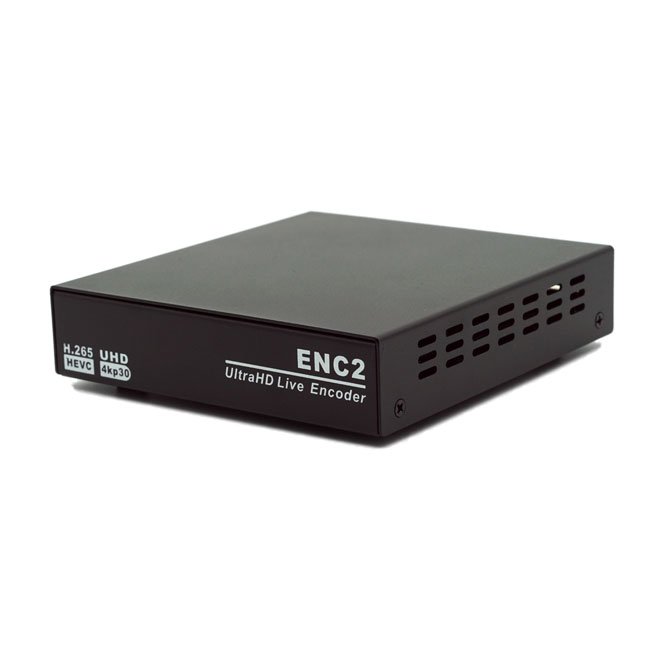

    ENC2 4K H 265 hardware encoder which is studied, developed and manufactured independently by JLONvision is a 2 channel of 4K 30fps h.265 embedded video and audio hardware encoder,It is also a 1 channel decoder and can be converted into a 4 channel IP transcoder(As shown in figure 3.3). It applies H.265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K 30fps H.265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, ENC2 4K H 265 hardware encoder and h 265 codec can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    ENC2 4K hevc video encoder applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on B,S configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.

    ENC2 4K H 265 hardware encoder supported audio encoding formats are AAC, MP3, PCMA,MPEG-2 etc, Support live stream protocol SRT,NDI,HTTP, HLS, RTSP, RTMPE,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    ENC2 h 265 codec Support timing recording and network storage,It supports 5 channels real-time transcoding function.

    Technical Features

    • Embedded hardware encoder
    • H.265,H 264 Main profile
    • Video input format 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Resolution 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support one or multi – channel mixed video, so as to achieve the signal source monitoring function.
    • Support CBR,VBR,AVBR
    • Highest code rate 40Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • ENC2 h 265 codec can use space pre-treatment and block filtering technology for moving scenes
    • ENC2 4K hevc video encoder can do the recording duringthe set time and save the recorded files in the
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NDI,NJ and so on



    Topology diagram of the overall scheme



    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 2x4K of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture

    Technical Specification Table

    Product Parameter
    Key Performance CPU ARM Cortex A9 [email protected] 1.4GHz

    Internal storage 2GB DDR3

    Flash 256MB Nand Flash

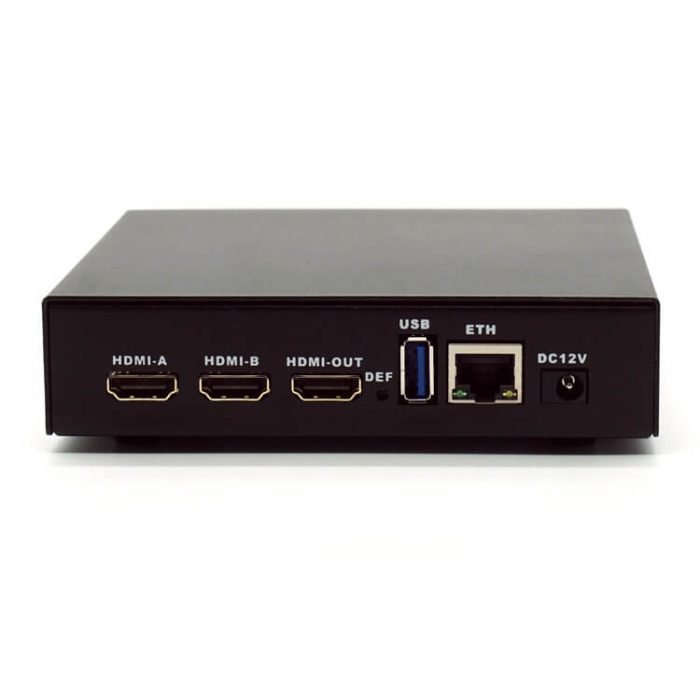

    Video parameter Input interface 2xHDMI 1.4 Maximum support 4K 30fps

    Signal source resolution 4K 30fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Coding format  H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H.265 Main profile
    MJPEG,JPEG Baseline

    Coding resolution 4K 30fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Frame rate 1-60 adjustable

    Multiple reference frame SmartP,DualP

    Maximum rate 40Mbps

    Rate control  CBR,VBR,AVBR

    Audio parameters Input interface HDMI

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10M,100M,1000M RJ45

    Wireless interface Optional dual frequency wifi module

    Transport protocols SRT,NDI,RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast

    ONVIF positive

    Basic parameter Data interface 1*USB 3.0

    Power supply  DC 12V 5A

    Power dissipation <15W

    Operating temperature 0-70℃

    Size 140*130*30(mm)

    package size 300*210*70(mm)

    Net weight 1.1KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication
