GUIDE IR236 IR Fever Warning System

GUIDE IR236 IR Fever Warning Systems are applied to mass fever screening in crowded public places, which help to detect people with a potential fever and may contain or limit the spread of the virus through identification of infected individuals showing fever symptoms. GUIDE IR236 combines advanced technology such as thermography human body temperature measurement algorithm and AI intelligent face recognition to make the equipment accurate and easy to use.

The IR236 equipped with various powerful functions. Multi-target tracking can ensure that no targets are missed. Custom warning zones and high-temperature shielding settings can avoid interference from other high-temperature objects. When detect the febrile people, it supports automatic warning, tracking and photo taking for storage which is convenient to query and classify management. GUIDE IR236 is the ideal equipment for epidemic prevention in public places such as airports, stations, factories, schools, and commercial centers.

Category: Fever Screener system

Description

Find the fever people precisely and alarm automatically

· With advanced infrared thermal imaging technology, inspect wide and large area flowing crowds, distinguish those who with elevated temperature and alarm immediately

Razor-sharp visual and thermal imaging

· It is used UFPA 384*288 pixels detector and digital signal transmission, keeps delivering razor-sharp thermal imaging video and visual video

Real-time high-frequency data capture transmission and storage

· With digital signal transmission and 25Hz PAL/NTSC frame frequency, it could capture real-time video and display without any delay

· Powerful software management and analysis functions

Precise single point and multi-point high temperature automatic tracking alarm

· Intelligent object differentiation avoiding false alarm and interference

· It alarms to the person’s face if with high temperature, and will never be affected by other high-temperature small objects like cigar or hot food

· Face recognition detection function

· Low temperature detection and tracking device alarm function

Technical specification table

IR236
Category	Item	Specification
IR detector	IR resolution	400×300
	Pixel size	17μm
	NETD	≤40mK
	Focal Length	9.7mm
	FOV	38°*28°
	Frame Rate	25Hz
Visible Camera	Resolution	2 million pixels
Visible Camera	Frame Rate	25Hz
Temperature Measurement	Range	-10℃~50℃
	Accuracy	≤ ± 0.3 ℃ (ambient temperature 16 ~ 32 ℃)
	Calibration	Built-in shutter and external black body, automatic calibration after selecting mode
Software functions	Parameter settings	Warning switch and warning threshold value, number of warning targets, warning photos automatic clearing, shielding fixed high temperature objects
	Face recognition	Intelligent face recognition, Supported from V1.0.9.0

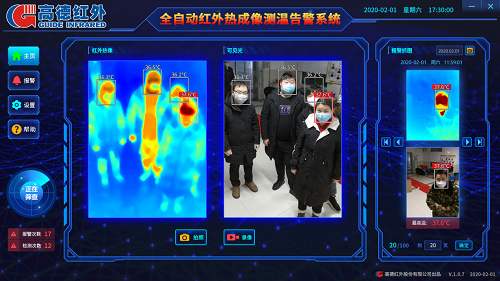

	Real-time preview	Real-time preview of visible and thermal image
	Real-time spot temperature detection	Real-time temperature monitoring at any point in the field of view
	Automatic tracking	Support automatic tracking for elevated body temperatures
	Automatic warning	Tracking, warning and photo capturing for the fever people; Warning while the Black Body is blocked.
	Historical records	Support query, classification and deletion of historical warning screenshots
	Video recording	Support. The software needs to be upgraded to V1.1.0.9, and equipped with NVR (NVR standard 4T hard disk), support GB28181 protocol to access third-party platforms
	Network communication protocol	HTTP、RTSP
Environmental adaptability	Work Temperature	-10 ~ 50 ℃ (ambient temperature 16 ~ 32 ℃)
	Storage Temperature	-20 ℃ ~ 60 ℃
	Work Humidity	<90% (non-condensing)
	Shock	30g 11ms, IEC60068-2-27
	Vibration	10HZ ~ 150Hz ~ 10Hz 0.15mm, IEC60068-2-6
Black body	Blackbody target surface uniformity	≤0.1 ℃
Black body	Temperature stability accuracy	≤ ± 0.2 ℃ (single point)
Camera head interface	Network interface	Two-way, visible light 100M, infrared 1000M
Camera head power	Input voltage	DC 12V
Camera head power	input power	≤12W
Packaging specifications	Camera head size	173mm×184mm×212mm
	Total height (incl. stand)	2200mm
	Camera head package	510mm× 440mm × 270mm (subject to actual delivery)
	Total weight	≤45kg (subject to actual delivery)
Certification	Certification	Medical Device Registration Certificate
