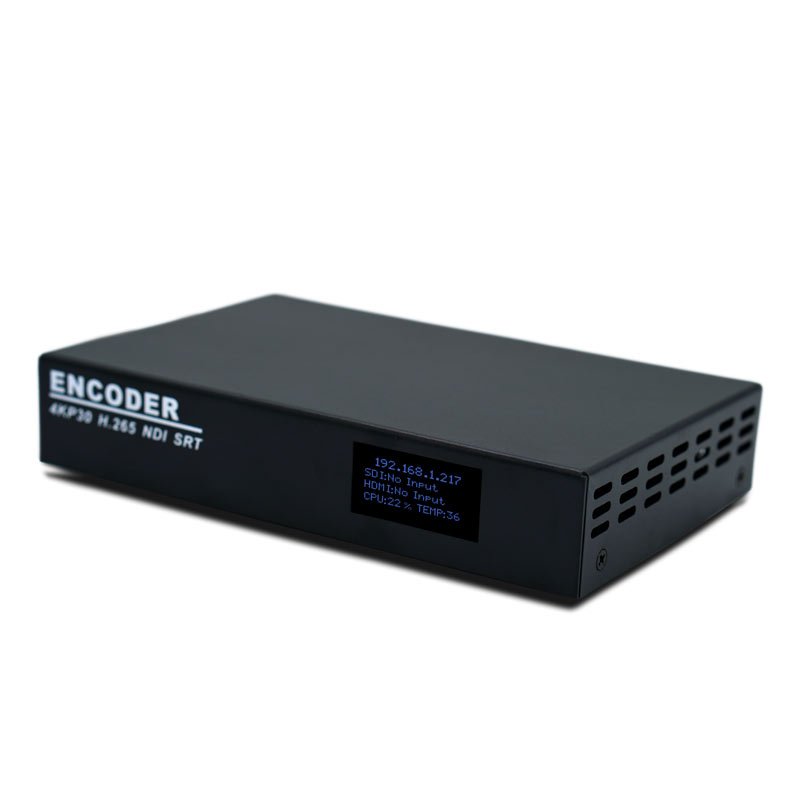

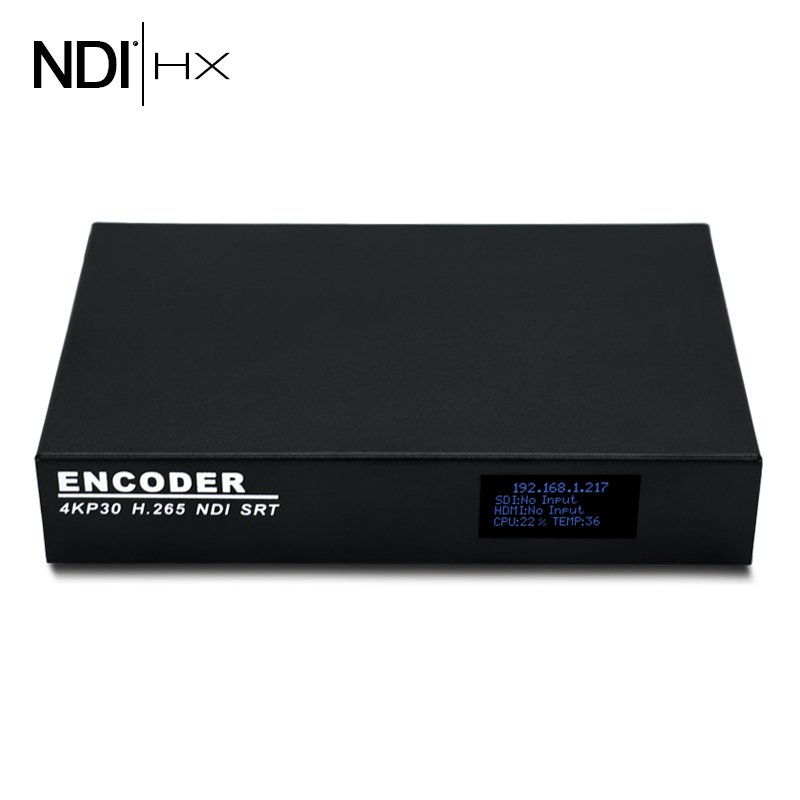

NDI HX encoder decoder for ENC1 Plus srt streaming 4K sdi encoder conversion live streams

ENC1 Plus NDI HX encoder decoder is a one channel of 4K 30fps(SDI 1080P) embedded video and audio hardware codec. It applies H 265 and H 264 encoding standard.Hardware h 265 encoders use independent SOC chips to encode and push video and audio signals, the srt streaming 4K sdi encoder encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider.

    Description

    ENC1 Plus NDI HX encoder decoder is the fastest, easiest, and best way to get video into IP workflows. it delivers the groundbreaking benefits of NDI®, NewTek’s innovative Network Device Interface technology. It captures any HDMI or SDI video source and convert it to IP. In its ultra-portable enclosure. Applications of the srt streaming 4K sdi encoder include hotel TV system, school teaching, digital TV broadcasting, recording system,live video streaming by web celebrity.

    ENC1 Plus NDI HX encoder decoder is a 1 channel of 4k 30fps embedded video and audio hardware encoder and decoder. It applies H 265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 1 channels of 4k(HDMI) or 1080P(SDI)H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, ENC1 srt streaming 4K sdi encoder can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    ENC1 Plus NDI HX encoder decoder supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol NDI,SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    ENC1 Plus srt streaming 4K sdi encoder can push live video stream to NDI,Facebook, YouTube, Amazon, Twitch, Livestream etc. Multiple platforms.

    Advantages

    NDI® Output Deliver any digital video source to the network in full HD, with high-efficiency NDI® output via NDI|HX and native support for resolutions up to 4K.

    NDI® Virtual Input Designate ENC1 Plus NDI HX encoder decoder as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the free NDI® Virtual Input* tool. (* NDI Virtual Input included with the free NewTek NDI Tools download.)

    Web-Based Interface Monitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.

    Network Visibility Access devices connected to other networks via IP address and make them visible within your production environment using NDI Access Manager.

    High bandwidth adaptability Achieve low bit rate encoding and ensure high definition image quality, [email protected], [email protected] can get high quality video. JLONvision advanced video buffer technology and forward error correction technology ensure video encoding delay ≤ 67ms and no stuck. It supports up to 1080p60Hz video format, the resolution of output format can be customized.

    Support All live broadcast platforms Support SRT,RTP,RTSP,RTMP,HLS,TS streaming media protocols for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc. Support Onvif 1.1-2.0 easy access to security protection system. Dual streams output supported and can be pushed to different live broadcasting platforms simultaneously, main stream encoding up to 4k30Hz, sub stream encoding support 1080p 60Hz. Strong flexibility to support secondary development Open API programming,SDK provided for second development,Customization service is available based on client’s needs.

    Technical Features

    • Embedded hardware encoder
    • H 265,H 264 Main profile
    • Signal source resolution 30fps 3840×2160,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Coding and decoding resolution: 30fps 3840×2160,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
    • Support 1-channel decoder HDMI output and multiple live streams mix video output
    • Support CBR,VBR,AVBR
    • Highest code rate 40Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • ENC1 Plus NDI HX encoder decoder can use space pre-treatment and block filtering technology for moving scenes
    • ENC1 Plus srt streaming 4K sdi encoder can do the recording during the set time and save the recorded files in the networks.
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as NDI,wowza, FMS, youtube,facebook,NJ and so on

    Topology diagram of the overall scheme


    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 4K 30fps of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture

    Technical Specification Table

    Product Parameter
    Key Performance CPU:ARM [email protected] 1.3GHz

    Internal storage:512MB DDR3

    Flash:256MB SPI Nand Flash

    Video parameter Input interface HDMI 1.4 x1(4K,30fps) and  3G-SDIx1(1080P),SDI LOOP OUT

    Signal source resolution 3840×2160 30fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Coded format   H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H 265 Main profile
    MJPEG JPEG Baseline

    Coding and decoding resolution  3860×2160 30fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Sub 720P,360P

    Frame rate 1-60 adjustable

    Multiple reference frame SmartP,DualP

    Maximum bitrate 40Mbps

    Rate control CBR,VBR,AVBR

    Audio parameters Input interface:HDMI,3.5mm Line-in( Audio can be used simultaneously)

    Output interface:HDMI,3.5mm Line-out( Audio can be used simultaneously)

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10M,100M,1000M RJ45

    Transport protocols  SRT,NDI,RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast

    ONVIF positive

    File Storage Memory interface USB 3.0

    Recording format MP4,TS,FLV,MOV,MKV,AVI

    Basic parameter Power supply  DC 12V 3A

    Power dissipation <5W

    Operating temperature 0-70℃

    Size 170x110x32(mm)

    package size 275x175x52(mm)

    Net weight 0.8KG

    Gross weight 0.83KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

    Password management

    Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication

    NDI is a registered trademark of Newtek
