1080P60fps video audio encoder for ENC1 hevc hdmi video compressor 1080P best mini video converter

ENC1 Mini 1080P 60fps video audio encode which is studied, It is a one channel of 1080P embedded video and audio hardware codec. It applies H 265 and H 264 encoding standard.Hardware h 265 encoders use independent SOC chips to encode and push video and audio signals, the ENC1 Mini hevc hdmi video compressor encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider, please check my tweets.



    ENC1 Mini 1080P60fps video audio encoder which is studied, developed and manufactured independently by JLONvision is a 1 channel of 1080P embedded video and audio hardware encoder. It applies H 265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 1 channels of 1080P H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, ENC1 hevc hdmi video compressor can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    ENC1 Mini 1080P60fps video audio encoder applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on BS configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.

    ENC1 hevc hdmi video compressor supports h.265 and h.264 of video encoding formats, Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    ENC1 Mini 1080P60fps video audio encoder supports 1 channel real-time transcoding function.

    Technical Features

    • Embedded hardware encoder
    • H 265,H 264 Main profile
    • Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
    • Highest code rate 60Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • ENC1 Mini 1080P60fps video audio encoder can use space pre-treatment and block filtering technology for moving scenes
    • ENC1 Mini 1080P best mini video converter can do the recording during the set time and save the recorded files in the networks.
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on

    Topology diagram of the overall scheme

    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 1080P of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture

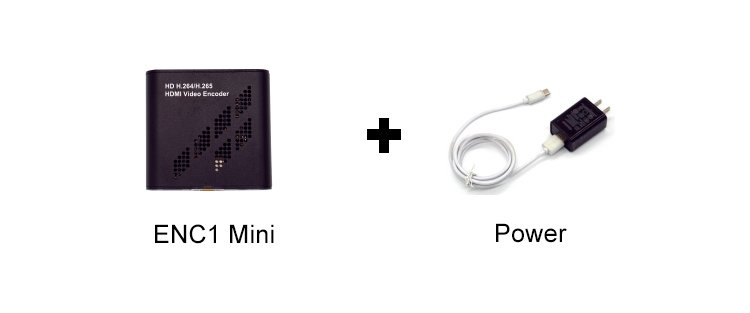

    Package content

    Technical Specification Table

    Product Parameter
    Key Performance CPU:ARM Cortex-A7@900MHz,32KB-Cache,32KB D-Cache

    Internal storage:128MB DDR3

    Flash:128MB SPI Nand Flash

    Video parameter Input interface HDMI 1.4 Maximum support 1080P@60fps

    Signal source resolution:1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Coded format   H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H 265 Main profile
    MJPEG JPEG Baseline

    Coding resolution Main 1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Sub 720P,360P

    Frame rate 1-30 adjustable

    Multiple reference frame SmartP,DualP

    Maximum rate 60Mbps


    Audio parameters Input interface:HDMI 1.4,3.5mm Line-in( Audio can be used simultaneously)

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10M,100M RJ45

    Transport protocols  RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast

    ONVIF positive

    Basic parameter Power supply  USB-C or DC 12V 1A

    Power dissipation <4W

    Operating temperature 0-70℃

    Size 58x62x16(mm LxWxH)

    package size 155x153x52(mm)

    Net weight 0.3KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

    Password management

    Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication
