1080P HD h 265 video codec for ENC1 hevc hdmi video encoder and decoder 1080P 60fps best mini box video compressor

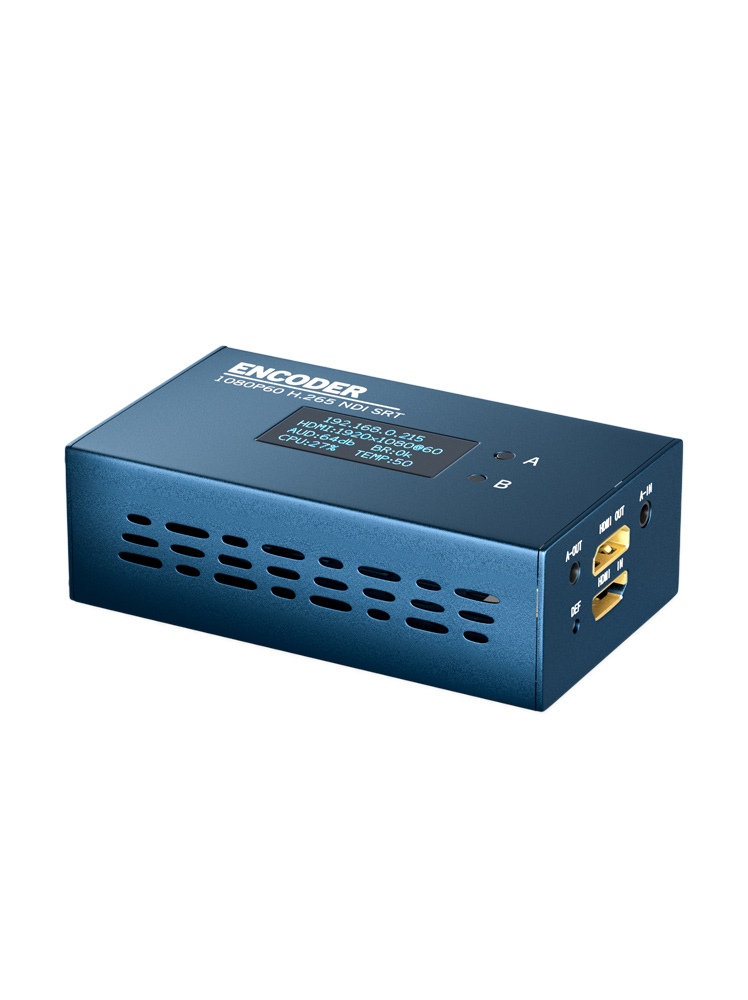

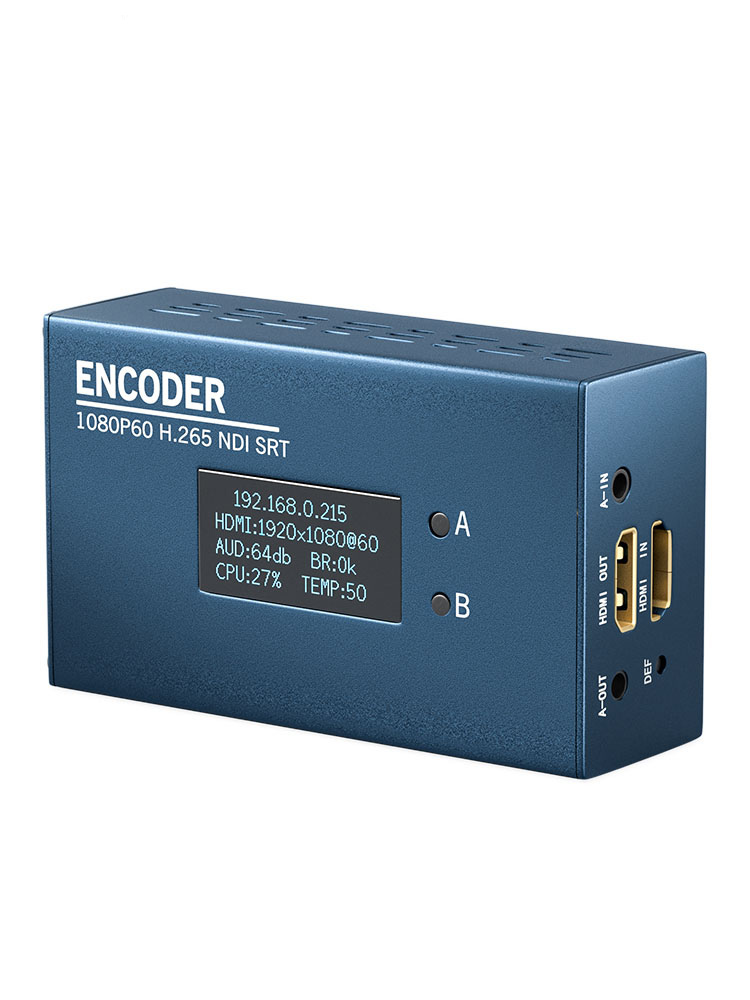

ENC1 1080P HD h 265 video codec which is studied, It is a one channel of 1080P embedded video and audio hardware codec. It applies H 265 and H 264 encoding standard.Hardware h 265 encoders use independent SOC chips to encode and push video and audio signals, the ENC1 hevc hdmi video encoder encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider, please check my tweets. (I recommend ENC hevc hdmi video encoder,As shown in figure 3.1)

Category:

Description

Explain the importance of encoder in IPTV solution, the core of streaming video and audio encoders is to provide high quality and stable live streaming, then send it to the streaming service for distribution, and finally the client accesses the streaming server to watch the program. Because it is a very important source in the whole scheme, it is necessary to analyze the streaming media video and audio encoders.

1.Hardware h 265 encoders use independent SOC chips to encode and push video and audio signals, the ENC1 hevc hdmi video encoder encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider, please check Chip algorithm evaluation. (I recommend ENC hevc hdmi video encoder,As shown in figure 3.1)

2.The software encoder adopts the combination of video and audio acquisition card and computer, video and audio signals are encoded and pushed by computer software. 10 years ago, our client would build such a system, but now it is basically on the verge of obsoletion. The advantage of this system is that video has good quality with low code rate and flexible extension function, but running on high code rate or H 265 coding algorithm requires a lot of computer configuration requirements, and it is very unstable to use Windows operating system at the same time.(As shown in figure 3.2)

ENC1 1080P HD h 265 video codec which is studied, developed and manufactured independently by JLONvision is a 1 channel of 1080P embedded video and audio hardware encoder. It applies H 265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 1 channels of 1080P H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, ENC1 1080P HD h 265 video codec can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

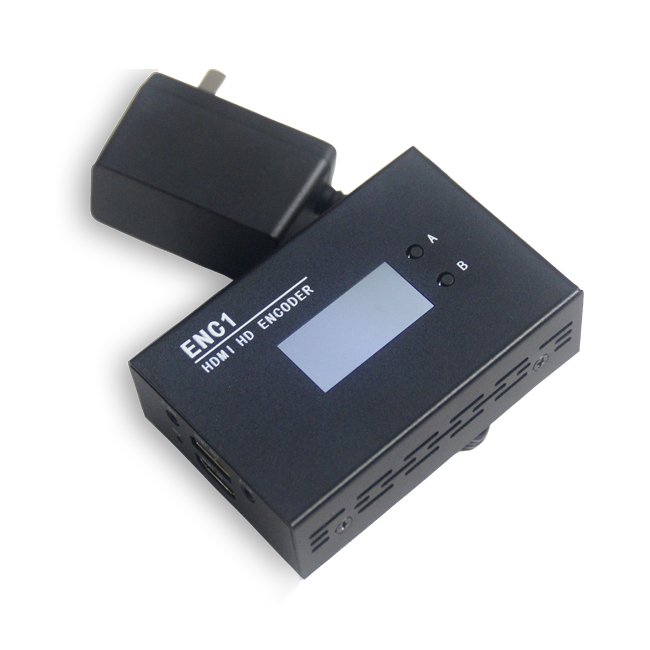

ENC1 hevc hdmi video encoder applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on BS configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.

ENC1 hevc hdmi video encoder h 265 and h 264 of video encoding formats are supported, Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

ENC1 1080P HD h 265 video codec Support 1 channel ouput and 1 channel real-time transcoding function.

Technical Features

  • Embedded hardware encoder
  • H 265,H 264 Main profile
  • Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
  • Support High-bandwidth Digital Content Protection (HDCP)
  • Audio output format AAC,MP3,PCMA,MPEG-2
  • Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
  • Support 1-channel decoder HDMI output and multiple live streams mix video output
  • Support CBR,VBR,AVBR
  • Highest code rate 40Mbps
  • Automatic scene change detection technology, improve the coding effect
  • Every channel is inserted with de-interlacing scanning algorithm
  • ENC1 hevc hdmi video encoder can use space pre-treatment and block filtering technology for moving scenes
  • ENC1 mini box video compressor can do the recording during the set time and save the recorded files in the networks.
  • With dongle function, Monitor safe operation
  • Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on

Topology diagram of the overall scheme

Product Advantages

  • SOC chip is even more powerful
  • Mini design is easy to carry
  • 1080P of image effect is more exquisite
  • Strong system stability
  • Low cost of maintenance
  • 7×24 non-stoping work
  • Multi-media platforms

Software configuration picture

Technical Specification Table

Product Parameter
Key PerformanceCPU:ARM [email protected] 1.3GHz

Internal storage:512MB DDR3

Flash:256MB SPI Nand Flash

Video parameterInput interface HDMI 1.4 Maximum support [email protected]

Signal source resolution:1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

Coded format   H.264 Baseline profile
H 264 Main profile
H 264 High profile
H 265 Main profile
MJPEG JPEG Baseline

Coding resolution Main 1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

Sub 720P,360P

Frame rate 1-60 adjustable

Multiple reference frame SmartP,DualP

Maximum rate 30Mbps

Rate control CBR,VBR,AVBR,FIXQP,QPMAP

Audio parametersInput interface:HDMI,3.5mm Line-in( Audio can be used simultaneously)

Output interface:HDMI,3.5mm Line-out( Audio can be used simultaneously)

Sampling rate 48K,44.1K,32K,16K,8K

Coded format AAC,MP3,MPEG2,PMCA,PMCU

Network ParametersLan interface 10M,100M,1000M RJ45

Transport protocols  RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast

ONVIF positive

File StorageMemory interface USB

Recording format MP4,TS,FLV,MOV,MKV,AVI

Basic parameterPower supply  DC 12V 1A

Power dissipation <4W

Operating temperature 0-70℃

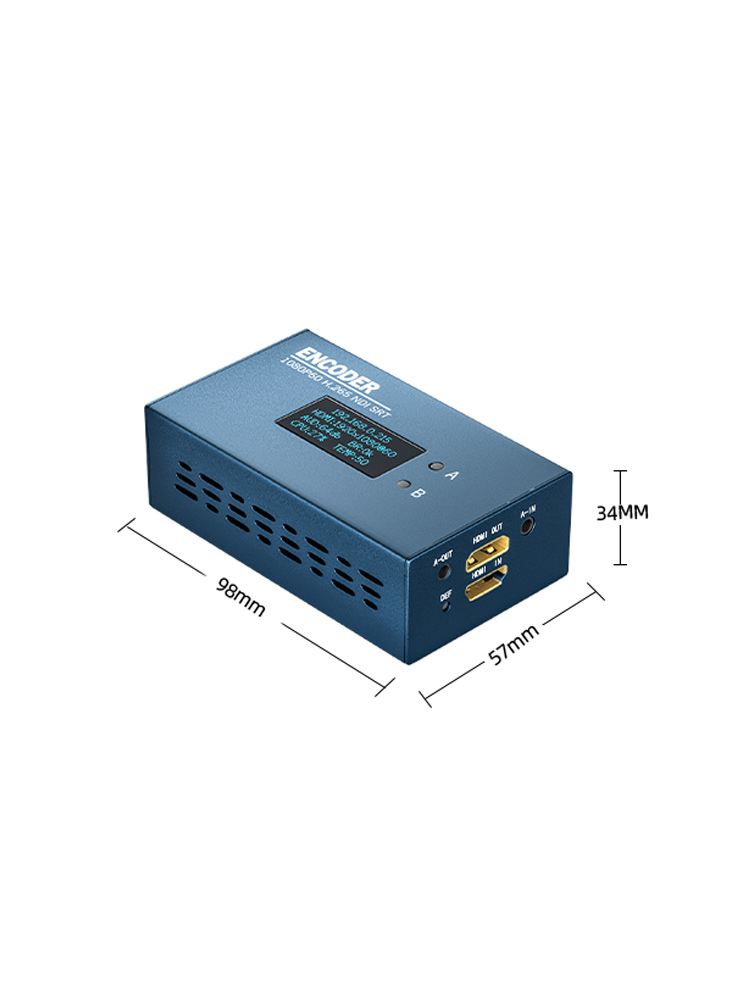

Size 100x67x32(mm)

Software function Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

Password management

Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening

Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

Resource management  Customize font, upload watermark Logo picture

Application Range

  • Network video and audio broadcast based on IP protocol.
  • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
  • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
  • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
  • Applicable to video live broadcast business of government, media industry and other portal websites
  • Suitable for remote monitoring in public places and important monitoring areas
  • Suitable for remote monitoring of military exercises and two-way audio-visual communication
