Get Started

Access the power supply/signal source/network

A. Wait for the OLED screen of the video codec to display the system information, indicating that the startup is normal.The default IP address of the video codec is 192.168.1.217. If your LAN is in different network segments, you need to change the IP address of your PC in the same network segment.

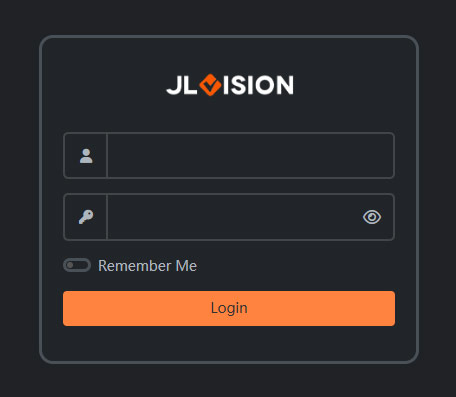

B. Through a browser (chrome kernel is recommended), visit http://192.168.1.217 ,Default encoder login account: admin Password: admin.

System running status

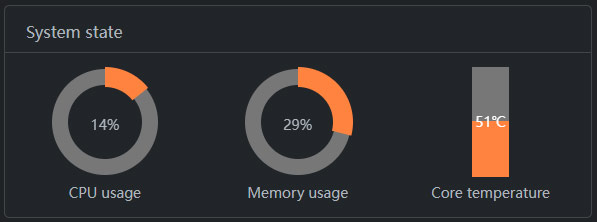

System status is divided into three parts:

A. CPU usage: It is recommended that the CPU usage not exceed 85%. If the CPU usage exceeds 85%, disable non-important functions.

B.CPU usage: It is recommended that the CPU usage not exceed 85%. If the CPU usage exceeds 85%, disable non-important functions.

C.Core temperature: the embedded core temperature is different from the CPU temperature we usually contact. The embedded core temperature is usually more than 100°C before there is a risk, so here we usually recommend no more than 70°C, otherwise we need to improve the use environment.

Network status

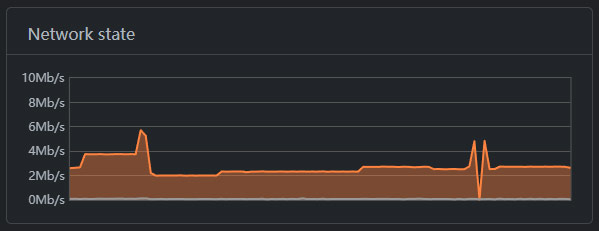

A. Network status diagram: shows the real-time upstream and downstream rate status of the encoder’s nic. Orange represents the upstream rate (output stream) and black represents the downstream rate (input stream).

Status of the source port

A. Different interface information is displayed according to the model you choose. The parameter status of the current input source is displayed above the icon and the port name is displayed below the icon.

B. When the signal source changes, the current input source resolution and frame rate will be updated.

Preview

A. In order to be compatible with different browsers, as well as considering the protection of the user’s computer performance, the preview of the encoder adopts JPEG refresh technology, not real-time video stream, so it will feel lag, delay, this is normal phenomenon.

B. The switch button in the upper right corner can be used to disable the preview function, which facilitates smooth operation on mobile networks or remote desktops. Only open channels are displayed here.

C. If the channels that are closed by default are “enabled” (the network broadcast stream input channel needs to be decoded at the same time), the preview pictures of the corresponding channels will also be displayed in this area.
