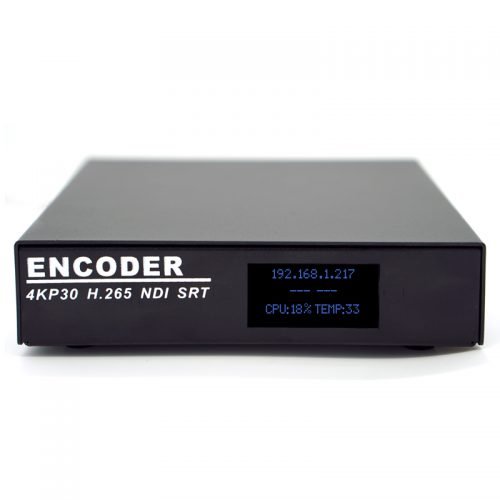

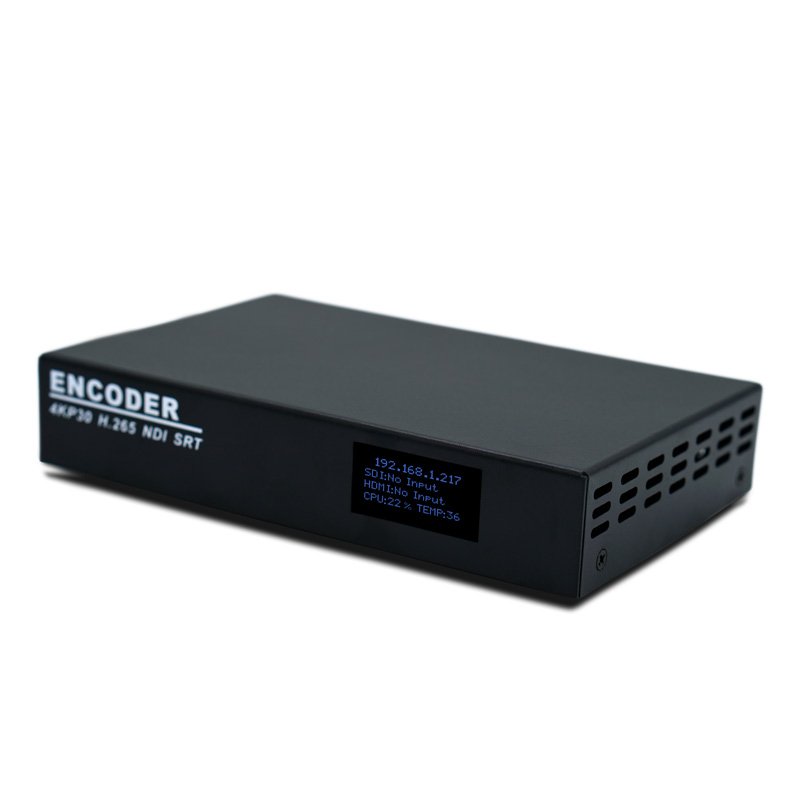

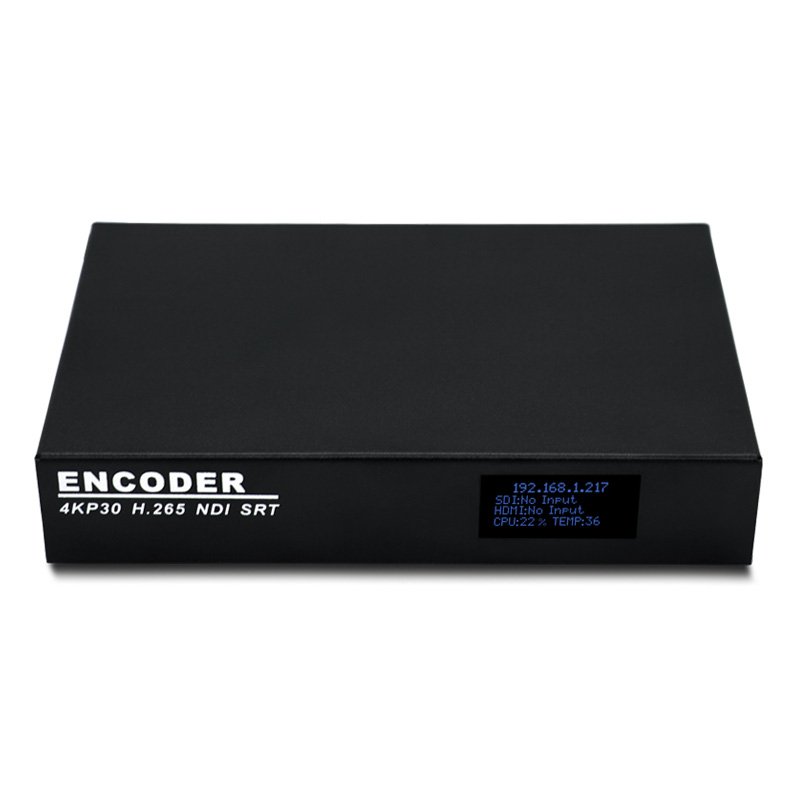

Video codec hardware ENC1 Plus sdi input transcoder streaming 4K ndi srt decoder

ENC1 Plus video codecs convert your HDMI and SDI video sources to NDI®| HX for low latency live streaming over Ethernet or WiFi.Because ENC1 Plus supports HEVC and h. 264(or HEVC) AVC encoding algorithm and compatible with the NDI ® | HX, so we can realize the high quality and low bit rate, low latency of the IP network broadcast video stream, ENC1 Plus support 1 channel 4k 30 FPS (HDMI) and a 1080P (SDI) codec functions, of course it is also a good live stream transcoder, such as the RTMP to NDI,RTSP to NDI(optional),HTTP to NDI(optional) and so on.

    Description

    ENC1 Plus video codecs convert your HDMI and SDI video sources to NDI®| HX for low latency live streaming over Ethernet or WiFi.Because ENC1 Plus supports HEVC and h. 264(or HEVC) AVC encoding algorithm and compatible with the NDI ® | HX, so we can realize the high quality and low bit rate, low latency of the IP network broadcast video stream, ENC1 Plus support 1 channel 4k 30 FPS (HDMI) and a 1080P (SDI) codec functions, of course it is also a good live stream transcoder, such as the RTMP to NDI,RTSP to NDI(optional),HTTP to NDI(optional) and so on.

    ENC1 Plus video codec is a 1 channel of 4k 30fps embedded video and audio hardware encoder and decoder. It applies H 265 and H 264 encoding standard . With this encoding standard,it can encode 1 channels of 4k(HDMI) or 1080P(SDI)H.265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H.264 encoding algorithm, ENC1 Plus ndi srt decoder also supports hardware decoding of the SRT,NDI protocol, which is what makes it different.It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    ENC1 Plus ndi srt encoder decoder supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol NDI,SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    ENC1 Plus video codec can push live video stream to NDI,Facebook(The tutorial), YouTube, Amazon, Twitch, Livestream etc. Multiple platforms.

    Technical Features

    • Embedded hardware encoder
    • H 265,H 264 Main profile
    • Signal source resolution 30fps 3840×2160,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Coding and decoding resolution: 30fps 3840×2160,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
    • ENC1 Plus decoder supports 1 channel decoding HDMI output and multiple live streams mix video output
    • Support CBR,VBR,AVBR
    • Highest code rate 40Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • ENC1 Plus video codec can use space pre-treatment and block filtering technology for moving scenes
    • The recording during the set time and save the recorded files in the networks.
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as NDI,wowza, FMS, youtube,facebook,NJ and so on

    Topology diagram of the overall scheme


    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 4K 30fps of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture

    Technical Specification Table

    Product Parameter
    Key Performance CPU:ARM [email protected] 1.3GHz

    Internal storage:512MB DDR3

    Flash:256MB SPI Nand Flash

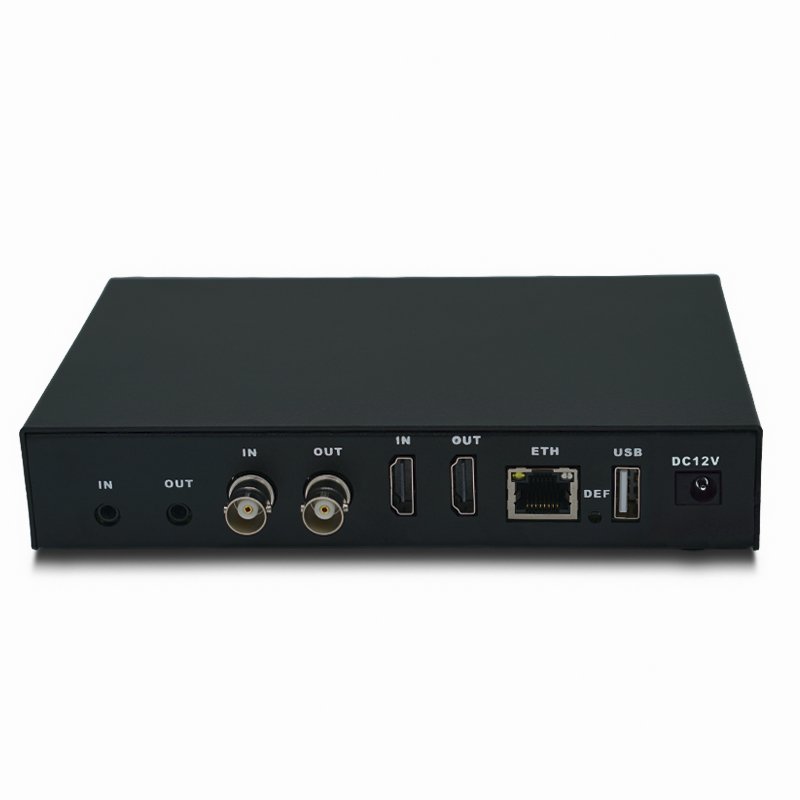

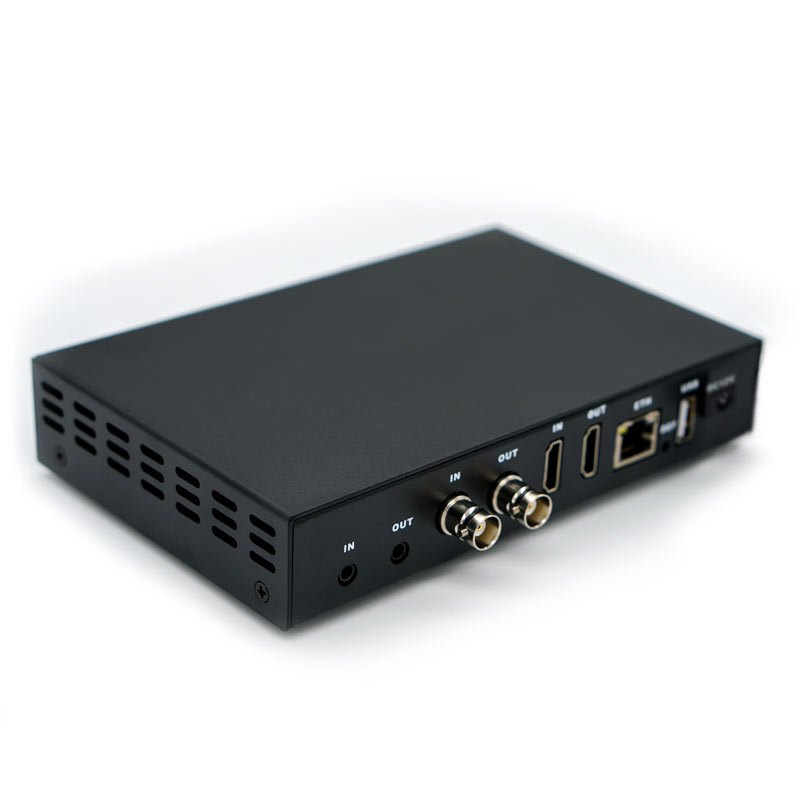

    Video parameter Input interface HDMI 1.4 x1(4K,30fps) and  3G-SDIx1(1080P),SDI LOOP OUT

    Signal source resolution 3840×2160 30fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Coded format   H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H 265 Main profile
    MJPEG JPEG Baseline

    Coding and decoding resolution  3860×2160 30fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Sub 720P,360P

    Frame rate 1-60 adjustable

    Multiple reference frame SmartP,DualP

    Maximum bitrate 40Mbps

    Rate control CBR,VBR,AVBR

    Audio parameters Input interface:HDMI,3.5mm Line-in( Audio can be used simultaneously)

    Output interface:HDMI,3.5mm Line-out( Audio can be used simultaneously)

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10M,100M,1000M RJ45

    Transport protocols  SRT,NDI(optional),RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast

    ONVIF positive

    File Storage Memory interface USB 3.0

    Recording format MP4,TS,FLV,MOV,MKV,AVI

    Basic parameter Power supply  DC 12V 3A

    Power dissipation <5W

    Operating temperature 0-70℃

    Size 170x110x32(mm)

    package size 275x175x52(mm)

    Net weight 0.8KG

    Gross weight 0.83KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

    Password management

    Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication
