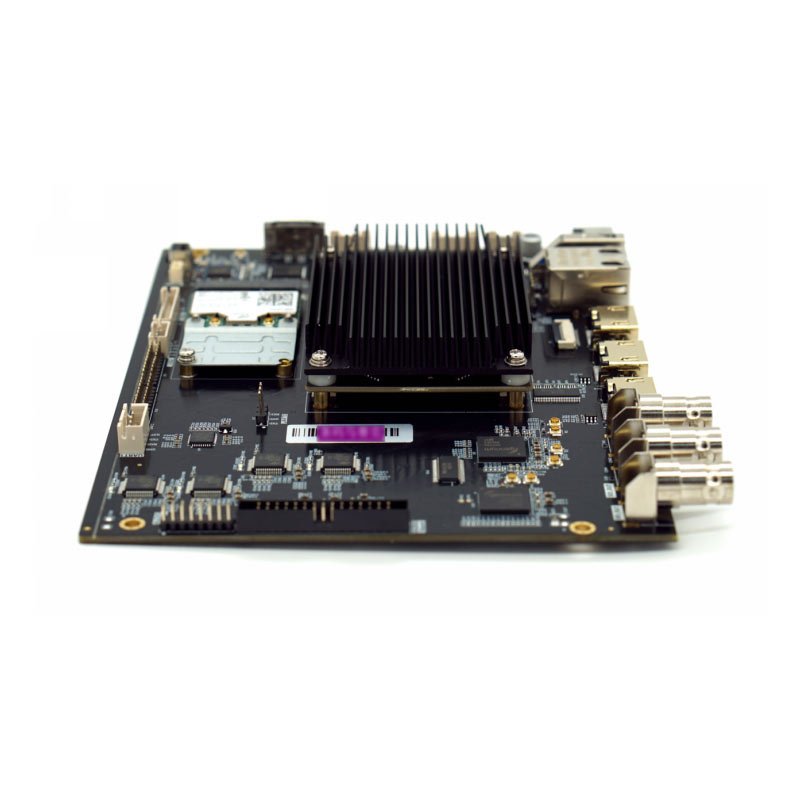

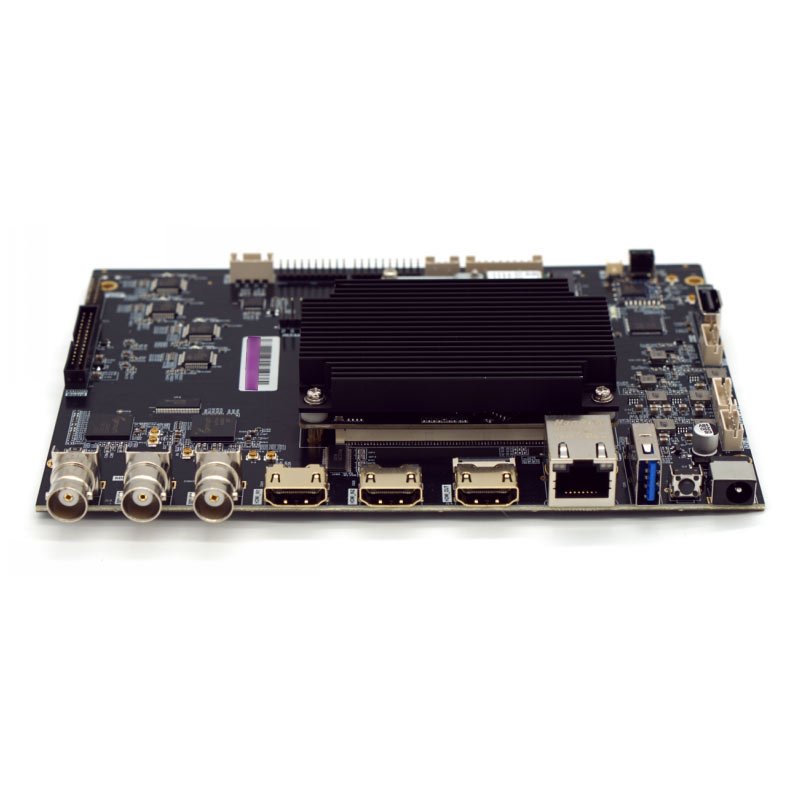

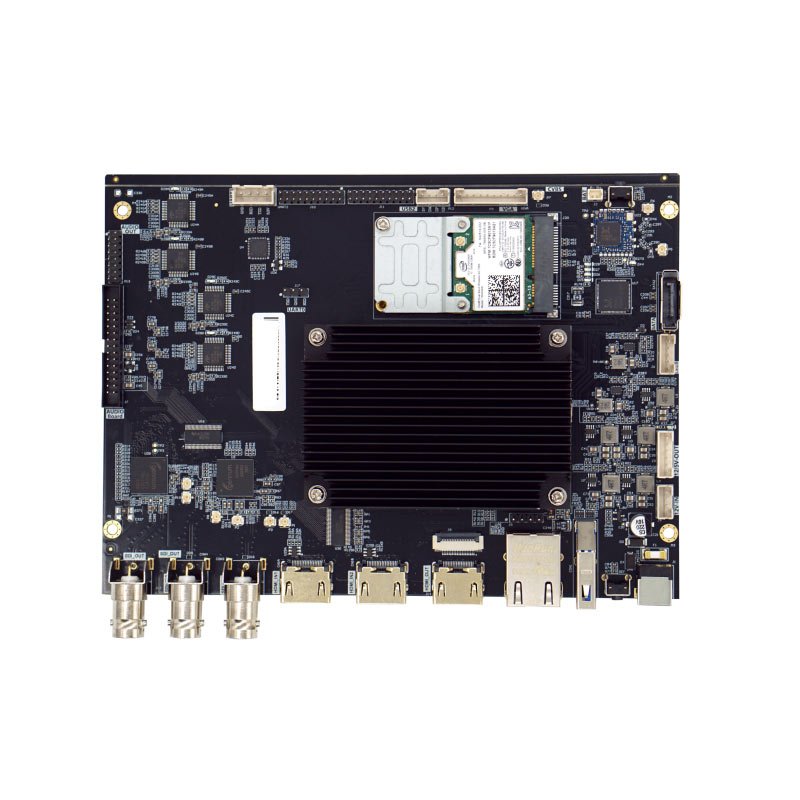

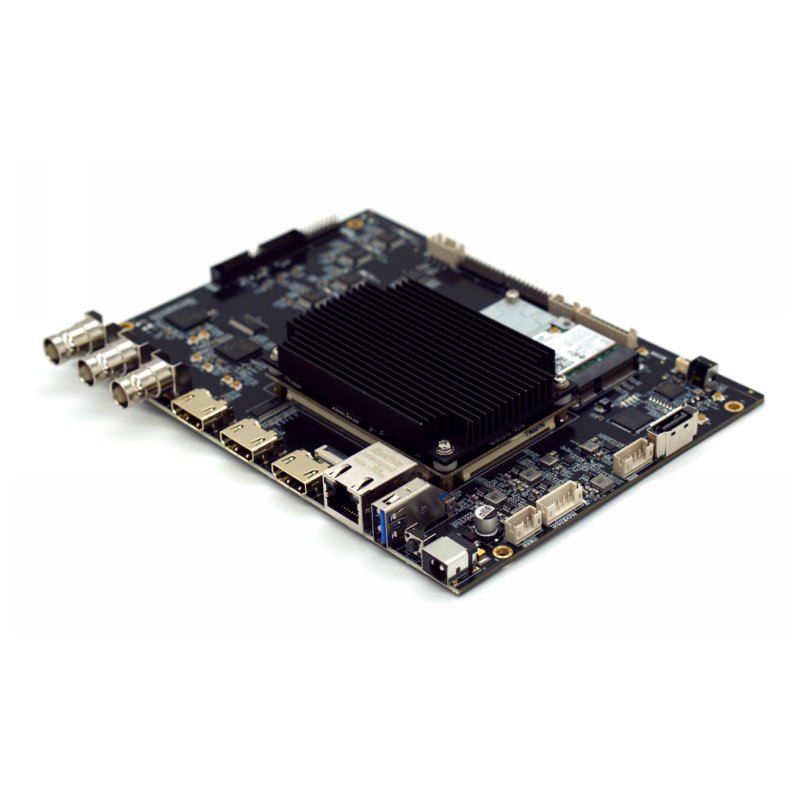

4 SDI srt codec development board is Hi3531DV100 4G module video encoder

4 SDI srt codec development board is a 2 channel of 4K 30fps or 4 channel SDI(1080P) h.265 Main profile embedded  hardware  encoder mainboard,Hi3531DV100 4G module video encoder supports 1x5G module and 1x4G modules for mobile networks,It is also a 1 channel decoder and can be converted into a 8 channel IP transcoder. It applies H.265 and H 264 encoding standard (TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K 30fps H.265 video and stereo audio simultaneously.

    Description

    4 SDI srt codec development board 3531D-DSH is a 4xSDI of 1080P and 1 channel HDMI output h.265 Main profile embedded  hardware codec mainboard,It is also a 1 channel decoder and can be converted into a 8 channel IP transcoder. It applies H.265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K 30fps H.265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, 4G module video encoder can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    4 SDI srt codec development board 3531D-DSH supported audio encoding formats are AAC, MP3, PCMA,MPEG-2 etc, Support live stream protocol NDI,SRT,NDI,HTTP, HLS, RTSP, RTMPE,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    3531D-DSH SDI  codec development board  provide the Sample program and PQTools.

    Technical Features

    • 4Gx1,socket,Embedded hardware codec
    • H.265,H 264 Main profile
    • Video input format 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Resolution 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support one or multi – channel mixed video, so as to achieve the signal source monitoring function.
    • Support CBR,VBR,AVBR
    • Highest code rate 40Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • 3531D-DSH 4G module video encoder can use space pre-treatment and block filtering technology for moving scenes
    • 3531D-DSH SDI  codec development board can do the recording duringthe set time and save the recorded files in the
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as wowza, twich, youtube,facebook,NJ and so on

    Technical Specification Table

    Product Parameter
    Key Performance CPU ARM Cortex A9 Dual@ 1.4GHz

    Internal storage 2GB DDR3

    Flash 256MB Nand Flash

    Video parameter Input interface 2xHDMI 1.4 Maximum support 4K 30fps,4x3G-SDI(1080P)

    Ouput interface 1xHDMI 1.4 (Internal FPC can be used to transfer to an in-board interface),1x3G-SDI(1080P),1xVGA Fecture Connecter(1080P),1xCVBS,4xSDI Loop out

    Signal source resolution 4K 60fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Coding format  H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H.265 Main profile
    MJPEG,JPEG Baseline

    Coding resolution 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Frame rate 1-60 adjustable

    Decoding resolution 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Multiple reference frame SmartP,DualP

    Maximum bitrate 40Mbps

    Bitrate control  CBR,VBR,AVBR

    ROI supports 8-region ROI coding

    Audio parameters Input interface HDMI,SDI

    Audio board special extension interface,Line Out interface is pin

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Mobile network 1X4G module

    Lan interface 10M,100M,1000M RJ45

    Wireless interface dual frequency wifi module, Bluetooth

    Transport protocols SRT,NDI,RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast

    Support ONVIF

    Basic parameter Data interface 1xUSB 3.0 ,SATA,mSATA

    Single Chip Microcomputer STM32F103RBT

    Pin GPIO,PWM,UART,12C,SPI,USB,12S-PCM

    Power supply  DC 12V 5A

    Power dissipation <35W

    Operating temperature 0-70℃

    Size 175x125x5(mm LxWxH)

    Net weight 2.3KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    PCB motherboard size

    PCB positioning diagram is included in the development materials, please take measurement as the standard

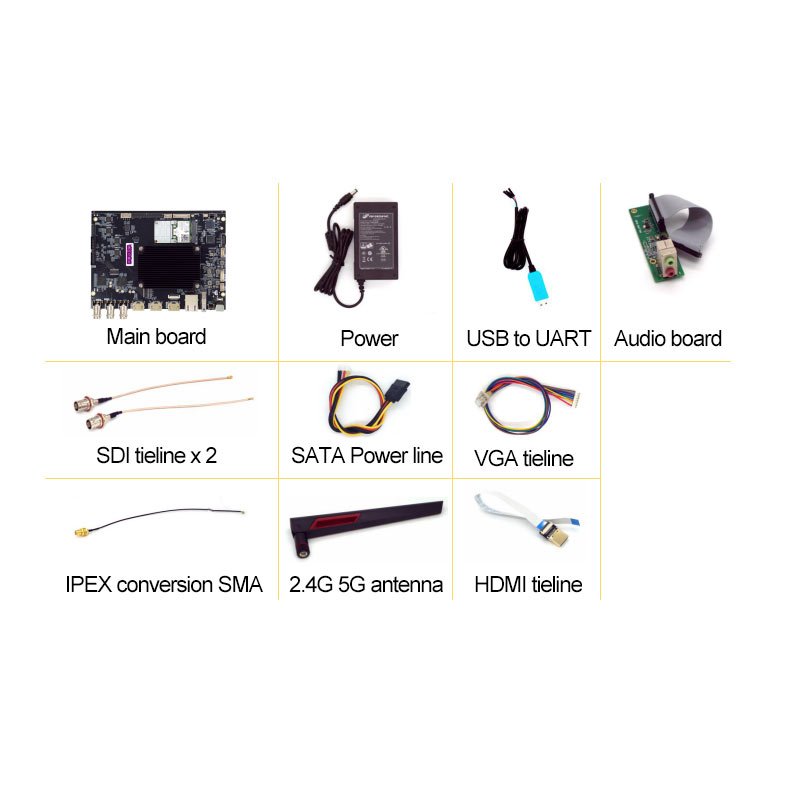

    3531DV100-DSH development kit accessory list

    Sample tutorial

    Our team crafted a rich example of tutorials, they include the audio input and output, audio decoding, screenshots, streaming, recording, video mixing, special effects, USB camera, GPIO operation, power management, touch screen operation, OLED screen control example program, to help you solve to death to all the problems in the process of product development, and we also constantly update example libraries and tutorial content.

    LinkSVP

    To make it easier for customers to develop products in machine vision and AI, we developed the LinkSVP framework, which simplifies the application development process so developers can focus more on the core algorithm, and we created several sample programs to help users quickly use it.Even on solutions with NNIE units, we can run deep learning algorithms by providing acceleration tools for embedded optimization

    Development environment

    We have cross-compiled common third-party libraries and placed them in virtual machines for easy development and debugging.

    List
    Development framework

    QT5

    Media related

    ffmpeg,fdkaac,lame.alsa

    Web

    php,nginx(nginx-rtmp+http-flv)

    Network related

    iperf,ppp,wpa,hostap,iw,libnl,ssl

    Graphic processing opencv,NCNN
    Other freetype,icu,libts,zlib,libxml…

    Open source code description

    In order to demonstrate the basic capabilities of the evaluation board and make it easy for users to fully evaluate the program before using the development program, we have developed an “encoder system” that can display all the interfaces of the customized development program and its encoding and decoding capabilities through the form of a visual and audio encoder.The product is completely open source, including the main program source code, file system, web source code and so on.

    If the user’s target product is similar to the open source product, it can be modified directly from the source code of the product.

    Open source function
    Running status

    -CPU performance, memory footprint, network status

    -Interface state, resolution detection

    -Video preview

    Encoding setting

    Encoding format – h. 264, h. 265,ACC,MP3,PCMA

    Resolution – 3840 x2160, 1920 x1080, 1280 x720, 640 x360

    Others – bit rate control, key frame interval, audio channel

    Note – all properties support dynamic modification and take effect in real time, no need to restart the device

    Output Settings

    Support the transport protocol – RTSP, RTMP, HLS, HTTP, ONVIF, unicast, multicast, pushing streams

    Others

    Network input – standard stream input is supported and can be streamed or recoded directly

    Overlay effects – captions, rolling captions, watermarks, tabletops, mosaics

    Screen mixed audio and video – multiple screen arbitrary layout Mosaic combination, and can be codec output, similar to the broadcast function Computer room monitoring: the camera is inserted through the USB port, which can encode and output live screen for monitoring the situation of the computer room. Meanwhile, it supports the dynamic alarm function.

    File recording – after the encoder is inserted into the usb flash disk, it can record the channel live stream into the file format and then save it to the usb flash disk.

    Video rotation – looping the video files on the usb flash drive and generating a live video stream.

    Group control – all video encoders can automatically group, and they can realize automatic device discovery, IP configuration, program summary and other functions. Any device in the LAN can serve as a media publishing server to provide concurrent live streaming.

    Development mode

    This product will be customized and developed directly using the official SDK, and the core hardware is fully compatible with it. You can directly use the official kernel, uboot, etc., without modifying any line of code.

    On top of that, Link provides a faster LinkSDK that not only makes learning easier, but also provides richer extension capabilities.

    Hisi SDK LinkSDK
    development language C C++,Javascrpit
    difficulties of thedevelopment difficult simple
    Driver support None Contains all common chip drivers
    memory management None support
    Thread management None automatic allocation
    data encapsulation None mp4,mkv,ts etc
    Streaming support None rtsp,rtmp,hls etc
    Mixing,The volume of statistical None support
    Echo Canceller Bad effect support , optimized

    REMARKS LinkSDK can be directly free commercial, no extra charge, can be customized according to customer demand new functional components.
