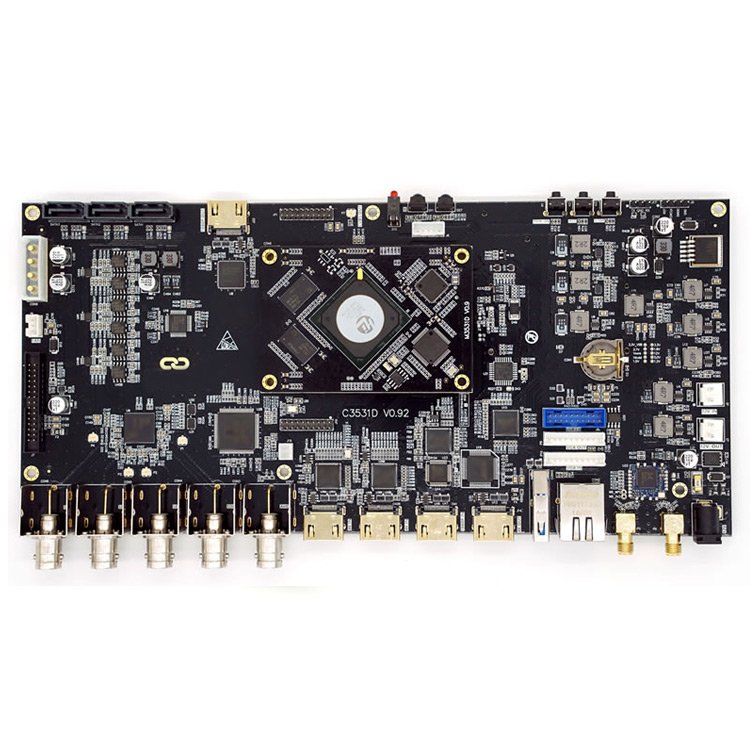

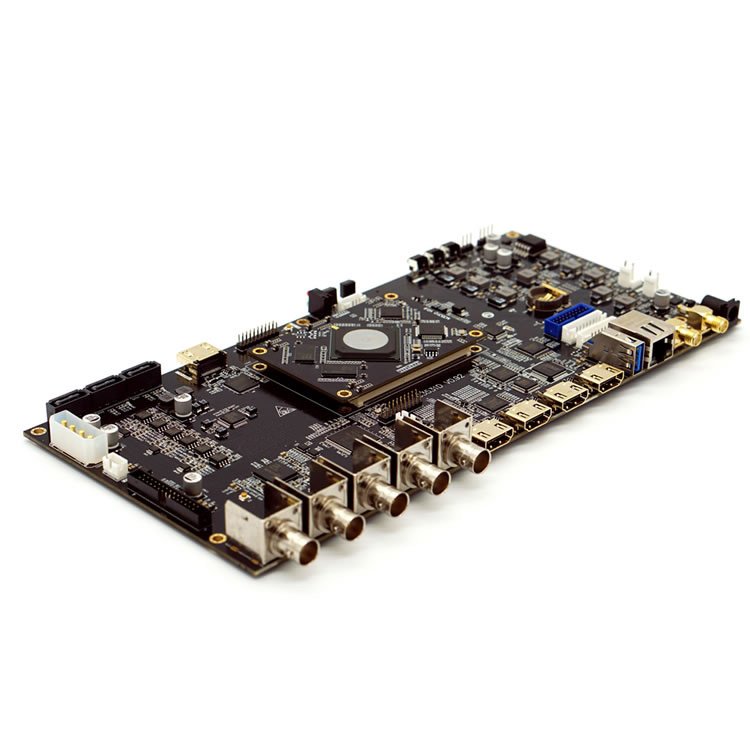

Internet TV head SDI h265 h264 hevc encoder mainboard HI3531D and it supports hevc hardware transcoder development board

HI3531D SDI h265 h264 hevc encoder mainboard which is studied,  It is a 2 channel of 4K  30fps or 8 channel 1080P 60fps embedded video and audio hardware encoder, also is a 4 channel SDI 1080P 60fps encoder development board. It supports video and audio encoding function, It supports 1 channel 4K HDMI output mixed screen, 1 channel HDMI1080P quality video decoding output, Or with VGA output. It applies H265 and H264 encoding standard,HI3531D hevc hardware transcoder development board has video and audio coding capabilities,and it supports 2-8 channel video live streaming transcoder,So it has two powerful video and audio processing capabilities.

    Description

    About video and audio hardware transcoding technology description

    1. When we are streaming live video and audio over the Internet, in the IPTV solution, HI3531D hevc hardware transcoder development board can receive external (for example: live stream from a surveillance camera RTSP ://192.168.0.68:9988) h 265,h 264 live streaming, after HI3531D hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to file that you want).

    HI3531D SDI h265 h264 hevc encoder mainboard which is studied, developed and manufactured independently by JLONvision is a 2 channel of 4K  30fps or 8 channel 1080P 60fps embedded video and audio hardware encoder, also is a 4 channel SDI 1080P 60fps encoder development board. It supports video and audio encoding function, It supports 1 channel 4K HDMI output mixed screen, 1 channel HDMI1080P quality video decoding output, Or with VGA output. It applies H265 and H264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K H265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H264 encoding algorithm, HI3531D SDI h265 h264 hevc encoder mainboard can save 30-50% of transmission bandwidth and storage space at the same video quality.

    HI3531D SDI h265 h264 hevc encoder mainboard and hevc hardware transcoder development board main chip powerful and provide rich interface, we provide you with a development tool, free SDK and technical support.

    HI3531D hevc hardware transcoder development board Supported audio encoding formats are AAC,MP3, PCMA, etc, Support live stream protocol HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    HI3531D hevc hardware transcoder development board has video and audio coding capabilities,and it supports 2-8 channel video live streaming transcoder,So it has two powerful video and audio processing capabilities(As shown in figure 1.1,1.2).

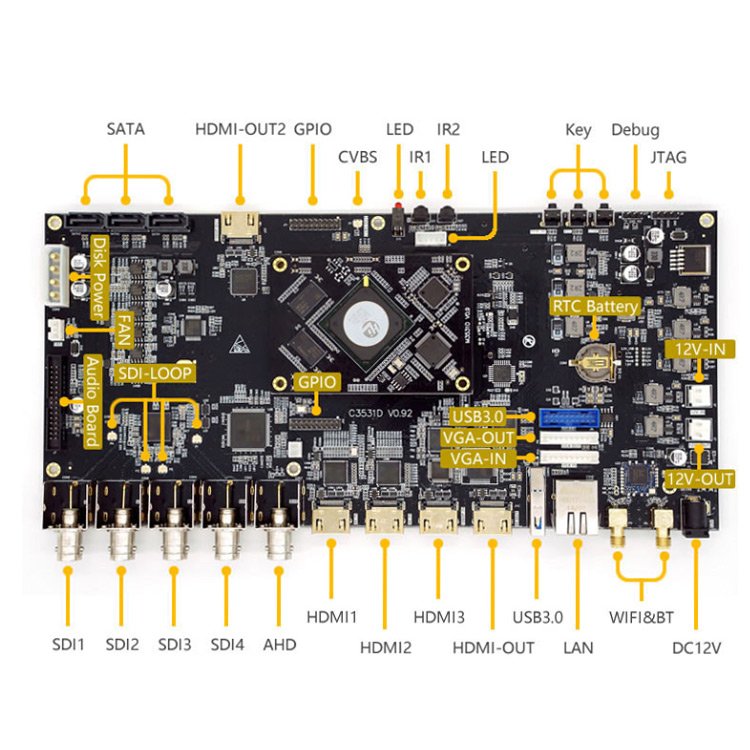

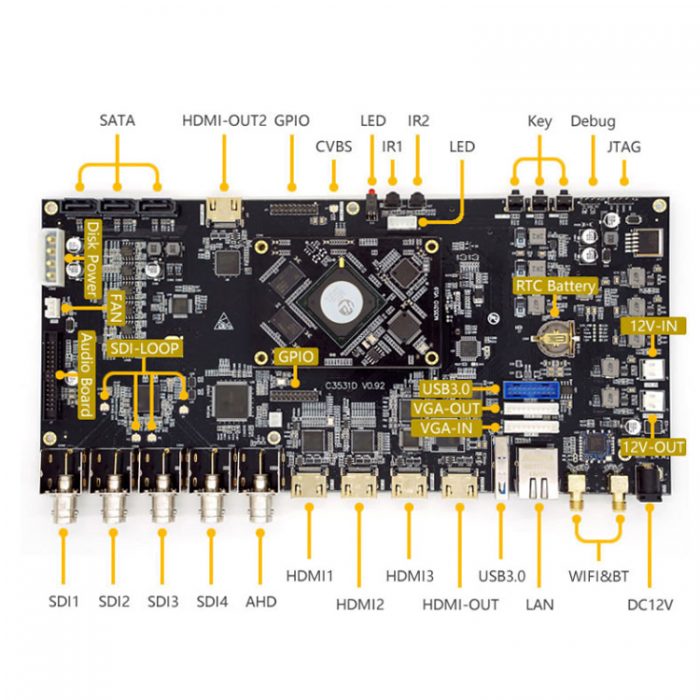

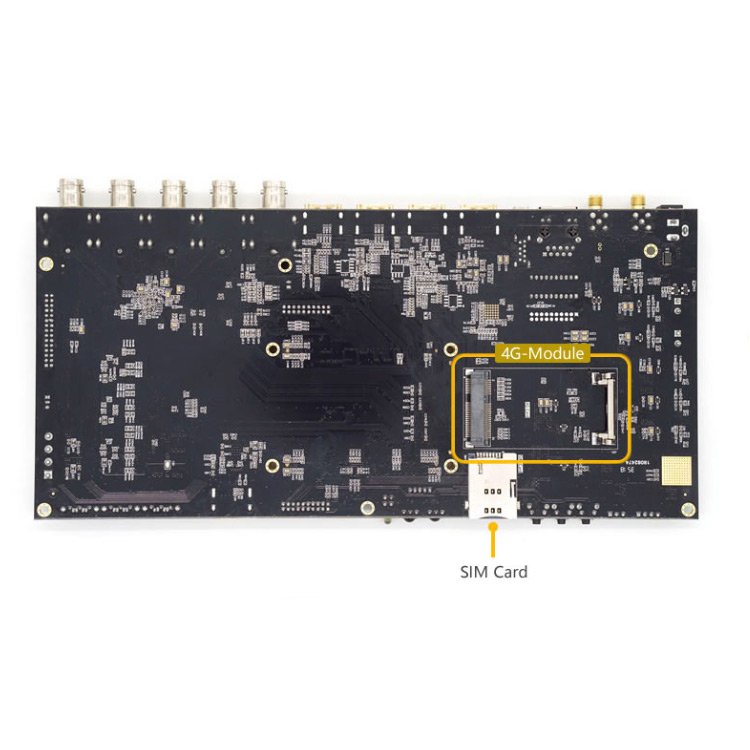

    The interface layout

    Package instructions

    Basic package

    Strengthen package

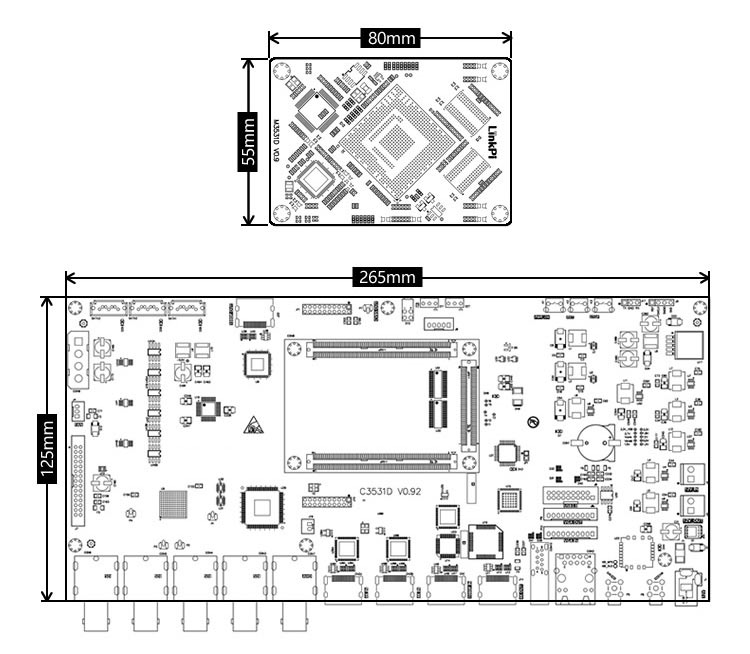

    Board size

    Remarks PCB positioning diagram is included in the development data. Please refer to the actual measurement.

    Product Parameter
    Key Performance CPU ARM Cortex A9 [email protected] 1.4GHz

    Internal storage 2GB DDR3

    Flash 256MB Nand Flash

    Video parameter Input interface

    2 HDMI Maximum support 4K30 with audio

    4 SDI Maximum support 1080P 60fps, the last input with audio

    VGA/HDMI alternative, Auto Switch, Maximum support 1080P60

    AHD Maximum support 1080P30

    Output interface

    Front HDMI interface support 4K

    Rear HDMI interface support 1080P

    Built-in VGA interface support 1080P

    CVBS

    4*SDI ring-out

    The coding performance

    8*[email protected]+8*[email protected] h264/h265 encoding

    2*[email protected]+2*[email protected] h264/h265 encoding

    8*[email protected] or 2*[email protected] h264/h265 decoding

    4*[email protected] mjpeg encoding/decoding

    Support H264+(Intelligent multiple reference frames,AVBR)

    Maximum rate 40Mbps

    Audio parameters Input interface HDMI

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10M,100M,1000M RJ45

    Wireless interface Optional dual frequency wifi module

    Transport protocols  RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast

    Others Network Gigabit cable network,dual-band Wifi, 4G module, Bluetooth

    Storage 3*SATA

    Audio frequency Audio board special extension interface

    Single Chip Micyoco STM32F 103RBT

    Pin Header GPIO,PWM,UART,I2C,SPI,USB,I2S/PCM

    Others 3*keypress, 1*USB3.0

    Power DC 12V, Typical power consumption is 20W, Maximum power consumption is 35W,

    12V-5A is recommended

    Sample tutorial

    Our team crafted a rich example of tutorials, they include the audio input and output, audio decoding, screenshots, streaming, recording, video mixing, special effects, USB camera, GPIO operation, power management, touch screen operation, OLED screen control example program, to help you solve to death to all the problems in the process of product development, and we also constantly update example libraries and tutorial content.

    Development environment

    We have cross-compiled common third-party libraries and placed them in virtual machines for easy development and debugging.

    List
    Development framework

    QT5

    Media related

    ffmpeg,fdkaac,lame.alsa

    Web

    php,nginx(nginx-rtmp+http-flv)

    Network related

    iperf,ppp,wpa,hostap,iw,libnl,ssl

    Graphic processing opencv,NCNN
    Other freetype,icu,libts,zlib,libxml…

    Open source code description

    In order to demonstrate the basic capabilities of the evaluation board and make it easy for users to fully evaluate the program before using the development program, we have developed an “encoder system” that can display all the interfaces of the customized development program and its encoding and decoding capabilities through the form of a visual and audio encoder.The product is completely open source, including the main program source code, file system, web source code and so on.

    If the user’s target product is similar to the open source product, it can be modified directly from the source code of the product.

    Open source function
    Running status

    -CPU performance, memory footprint, network status

    -Interface state, resolution detection

    -Video preview

    Encoding setting

    Encoding format – h. 264, h. 265,ACC,MP3,PCMA

    Resolution – 3840 x2160, 1920 x1080, 1280 x720, 640 x360

    Others – bit rate control, key frame interval, audio channel

    Note – all properties support dynamic modification and take effect in real time, no need to restart the device

    Output Settings

    Support the transport protocol – RTSP, RTMP, HLS, HTTP, ONVIF, unicast, multicast, pushing streams

    Others

    Network input – standard stream input is supported and can be streamed or recoded directly

    Overlay effects – captions, rolling captions, watermarks, tabletops, mosaics

    Screen mixed audio and video – multiple screen arbitrary layout Mosaic combination, and can be codec output, similar to the broadcast function Computer room monitoring: the camera is inserted through the USB port, which can encode and output live screen for monitoring the situation of the computer room. Meanwhile, it supports the dynamic alarm function.

    File recording – after the encoder is inserted into the usb flash disk, it can record the channel live stream into the file format and then save it to the usb flash disk.

    Video rotation – looping the video files on the usb flash drive and generating a live video stream.

    Group control – all video encoders can automatically group, and they can realize automatic device discovery, IP configuration, program summary and other functions. Any device in the LAN can serve as a media publishing server to provide concurrent live streaming.

    Development of information

    Burning tool
    Virtual machine
    Burn tool instructions 253KB
    Virtual machine instructions 290KG
    M3531D audio and video resource distribution 213KB
    Development board quick use guide 847KB
    C3531D Hardware interface specification 562KB

    Development mode

    This product will be customized and developed directly using the official SDK, and the core hardware is fully compatible with it. You can directly use the official kernel, uboot, etc., without modifying any line of code.

    On top of that, Link provides a faster LinkSDK that not only makes learning easier, but also provides richer extension capabilities.

    Hisi SDK LinkSDK
    development language C C++,Javascrpit
    difficulties of thedevelopment difficult simple
    Driver support None Contains all common chip drivers
    memory management None support
    Thread management None automatic allocation
    data encapsulation None mp4,mkv,ts etc
    Streaming support None rtsp,rtmp,hls etc
    Mixing, volume statistics None support
    AAC encoding None support , optimized

    REMARKS LinkSDK can be directly free commercial, no extra charge, can be customized according to customer demand new functional components.
