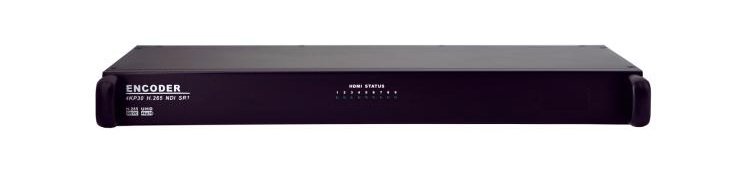

Multichannel SRT encoder of ENC9 supports HDMI NDI encoder live streaming protocol IPTV head

ENC9 Multichannel SRT encoder supports 12 channels of dual code stream encoding output, with the highest supported resolution of 4K 30fps,it also supports the H 264 or H 265 compression standard.Hardware video encoders use independent SOC chips to encode and push video and audio signals, the ENC9 HDMI NDI encoder is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider.



    ENC9 Multichannel SRT encoder is a 9 channel of 1080P embedded video and audio hardware encoder,It can be converted into a 12 channel IP transcoder. It applies H.265 and H.264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 9 channels of 1080P 60fps H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, ENC9 HDMI NDI encoder can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    ENC9 Multichannel SRT encoder applies 1U design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on BS configuration structure; management and configuration are done by this web-page in the long-distance without being supervised by human.

    ENC9 HDMI NDI encoder supported h 265 and h 264 standard,  Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,NDI,HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    ENC18 Multichannel SRT encoder support timing recording and network storage,IPTV head h 265 video compressor of ENC9 supports 12 channel real-time transcoding function.

    Technical Features

    • Embedded hardware encoder
    • H 265,H 264 Main profile
    • Video input format 4K 30fps,1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA
    • Coding resolution 18x4K 30fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support 9 channel online monitoring function
    • Support CBR,VBR,AVBR
    • Highest code rate 40Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • ENC9 HDMI NDI encoder can use space pre-treatment and block filtering technology for moving scenes
    • ENC9 Multichannel SRT encoder do the recording duringthe set time and save the recorded files in the networks
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as NDI,wowza, FMS, youtube,facebook,NJ and so on

    Topology diagram of the overall scheme


    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 12 channels 1080P 60fps of encoding
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture

     Package Content

    Technical Specification Table

    Product Parameter
    Key Performance CPU ARM Cortex A9 Dual@ 1.4GHz

    Internal storage 2GB DDR3

    Flash 256MB Nand Flash

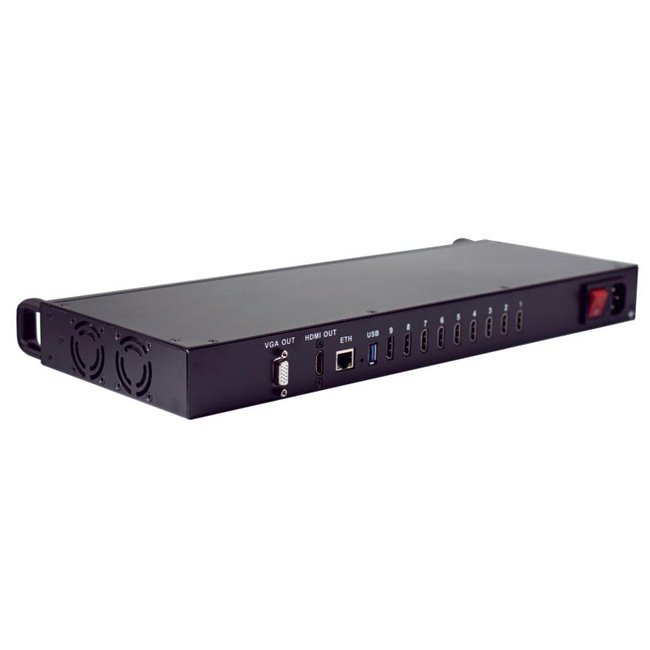

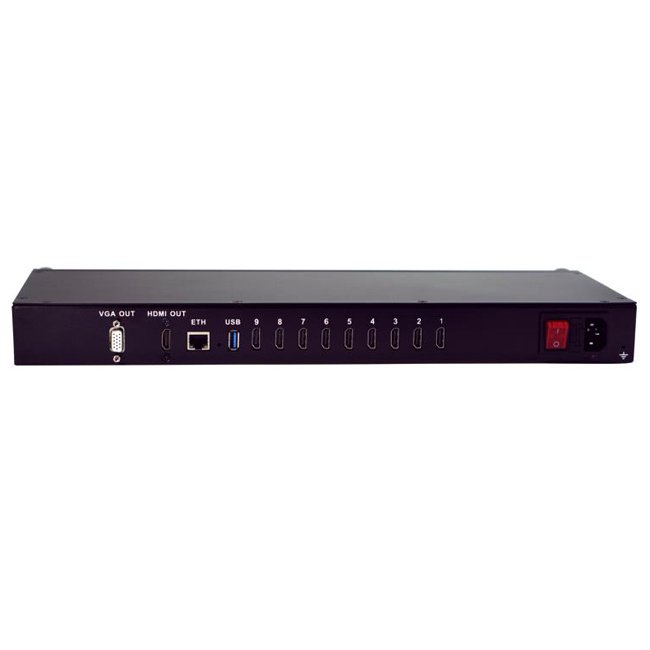

    Video parameter Input interface 9xHDMI 1.4 Maximum support 4K 30fps

    Signal source resolution:18 channels 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Coded format  H.264 Baseline profile
    H.264 Main profile
    H.264 High profile
    H.265 Main profile
    MJPEG JPEG Baseline

    Coding resolution 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Frame rate 1-60 adjustable

    Multiple reference frame SmartP,DualP

    Maximum rate 40Mbps

    Rate control  CBR,VBR,AVBR

    Audio parameters Input interface:HDMI

    Sampling rate 48K,44.1K,32K,16K,8K

    Coding format AAC,MP3,MPEG2,PMCA,MPEG-2,PMCU

    Network Parameters Lan interface:10M,100M,1000M RJ45 port

    Transport protocols  SRT,NDI,RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast

    ONVIF positive

    Basic parameter Power supply  DC 12V 5A

    Power dissipation <20W

    Operating temperature 0-70℃

    Size 445x225x45(mm,LxWxH)

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    [ fusion_table]

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication

    NDI is a registered trademark of Newtek
