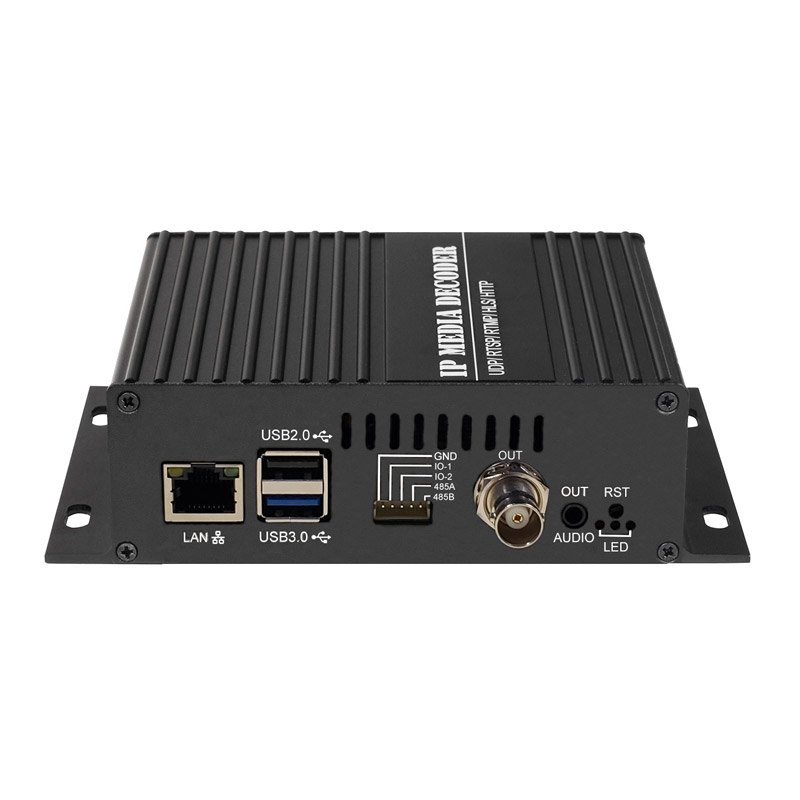

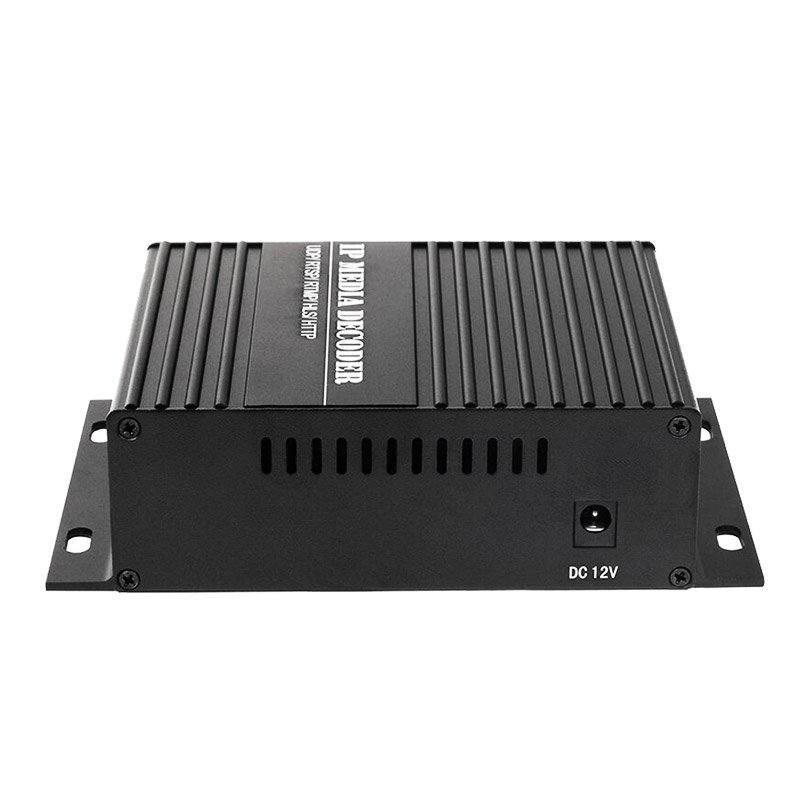

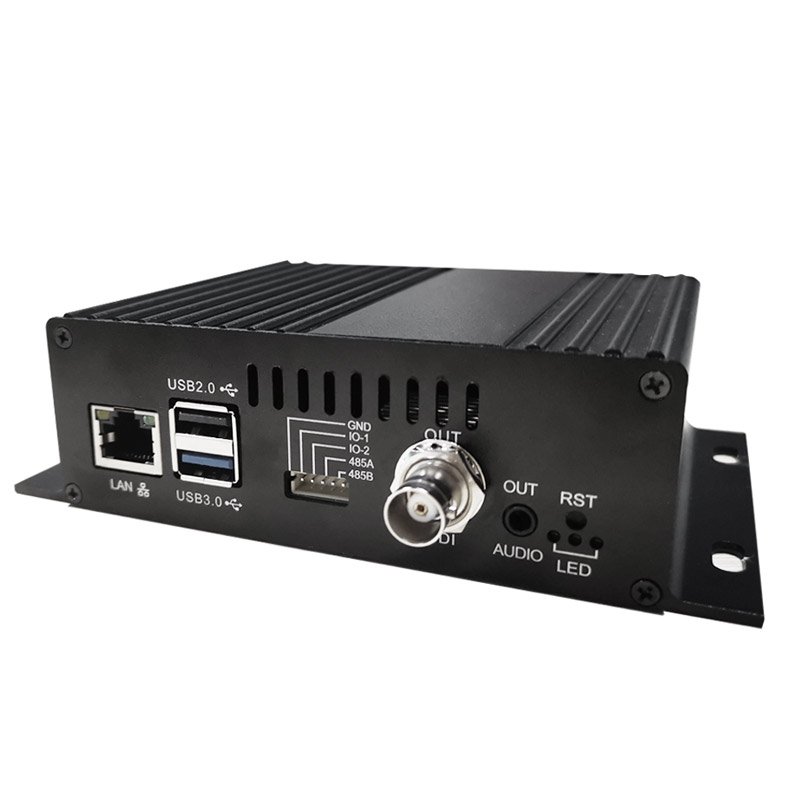

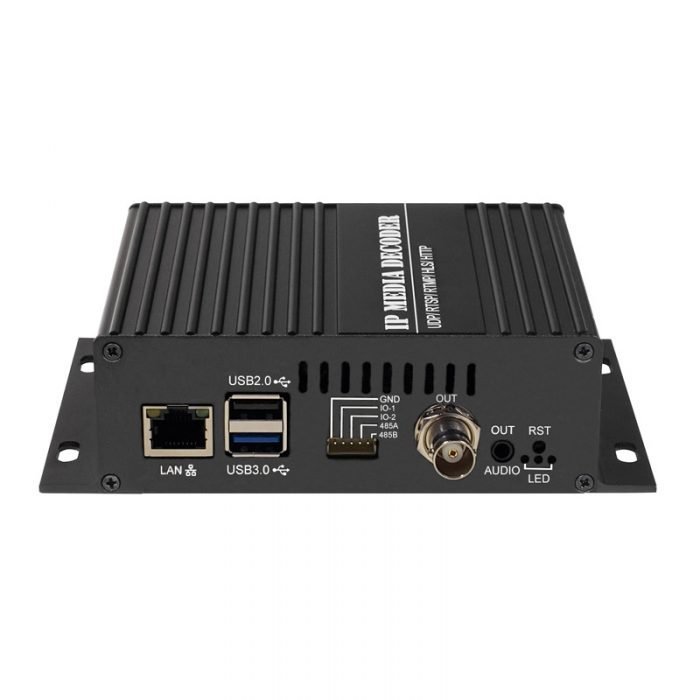

srt video decoder 9110SDI supports H.265 Coding standard SDI output live video streams decoding

9110SDI srt video decoder is professional hd audio and video decoding products. This product has support 1 channel SDI video and audio output function. Video decoding output 1 channel 1080P 60fps, Audio decoding support MP3,AAC format. 9110SDI srt video decoder supports SRT,RTSP,HTTP,udp,RTMP,HLS live streaming transmission protocol.

    Description

    About streaming media video and audio hardware decoding technical description

    1. When we are streaming live video and audio over the Internet, in the IPTV solution, ENC2 can receive external (for example: live stream from a surveillance camera RTSP ://192.168.0.68:8080)  SRT,RTMP,rtsp,http live streaming, after ENC2 hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to live streams that you want).(As shown in figure 1.1)

    2.IPTV solutions include client devices such as set-top boxes, hardware decoders, mobile phones and computers. Focus on explaining the set-top box and hardware decoder, They work by converting the live video and audio streaming data packets of h 265,h 264 over the Internet into digital video signals through the decoding chip. this process we also called hardware decoding (such as Decoder 9110SDI).(As shown in figure 1.2)

    9110SDI srt video decoder is professional hd audio and video decoding products. This product has support 1 channel SDI video and audio output function. Video decoding output 1 channel 1080P 60fps, Audio decoding support MP3,AAC format. 9110SDI srt video decoder supports SRT,RTSP,HTTP,udp,RTMP,HLS live streaming transmission protocol.Very convenient to use, plug in the network cable can be used, saving the trouble.

    Technical Features

    • Embedded hardware decoding
    • Video output SDI(audio and video) and audio output 3.5 mm
    • Support h.264, h.265 decoder output: 1080P 60fps,720P,D1
    • Support SRT,RTSP,HTTP,udp,RTMP,HLS etc
    • Support multiple video splicing streams
    • Support display 1- 4 split screen output
    • Decoding specification BASELINE PROFILE,MAIN PROFILE,HIGH PROFILE
    • Support one-click restore default configuration
    • Low power supply design

    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 1x1080P 60fps of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software Interface

    Parameter

    Product  model 9110SDI srt video decoder
    Output 1 channel SDI signal output
    Input 1 channel IP signal input
    Video Output resolution 1920×1080,1280×720,720×576,704×576,640×480 etc
    Decoding standard H.264,H.265
    Decoding level H.265 MAIN PROFILE

    H.264 BASELINE PROFILE

    H.264 MAIN PROFILE

    H.264 HIGH PROFILE

    Split screen display Can display 1-4 split screen output
    Decodable protocol srt,http,rtsp,udp, rtmp,Hyperlink protocol, which supports Srt forwarding
    Audio Output 1 channel sdi embedded audio, 1 channel 3.5mm audio
    Audio coding AAC,MP3
    IP input 100M or 1000M adaptive Ethernet portx1
    System Configuration IE configuration, remote upgrade
    Others power 12V-2A
    power dissipation 5W
    Size 119mm x 102mm x 42mm(LxWxH)
    operating temperature -20℃+60℃
    operating humidity <90%,No condensation
    weight 0.3KG
    We reserve the right to adjust the product parameters. If you have any questions, please contact us

    Application Range

    • Digital TV Broadcasting System / IPTV & OTT system / Internet TV / Digital Signage Project / Remote Video Conference
      Video Monitoring / Live Streaming / Digital TV Broadcasting System / Digital TV Programs Transmission
      Hotel IPTV System / Head-end system of Digital TV branch network / CATV Broadcasting system
      Edge side of Digital TV backbone network
