4G aggregation H.265 H.264 SDI Video Encoder IPTV Live Streaming support SRT RTMP RTMPE and Facebook YouTube WOWZA

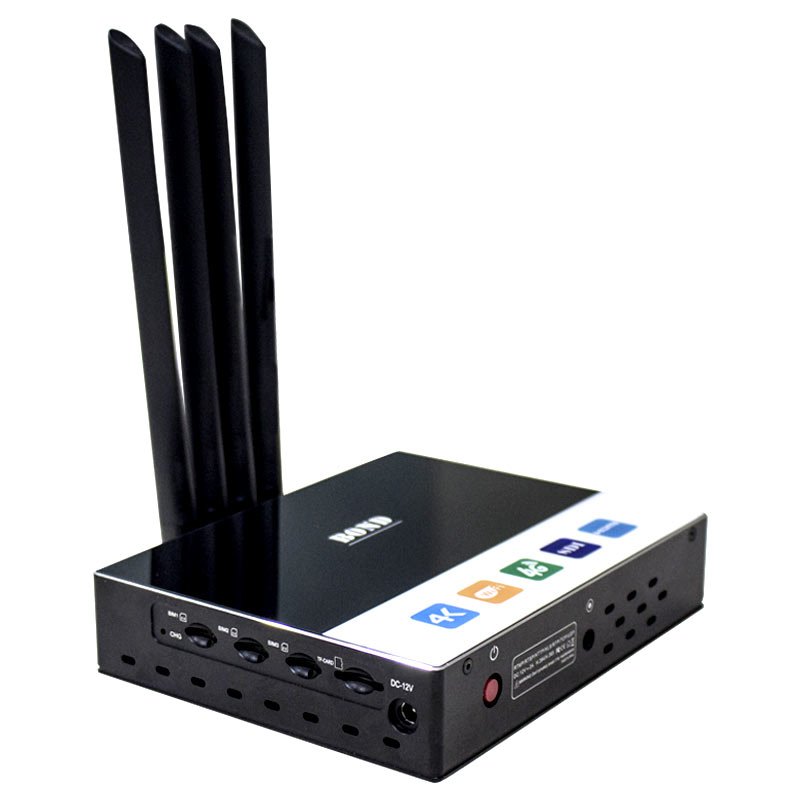

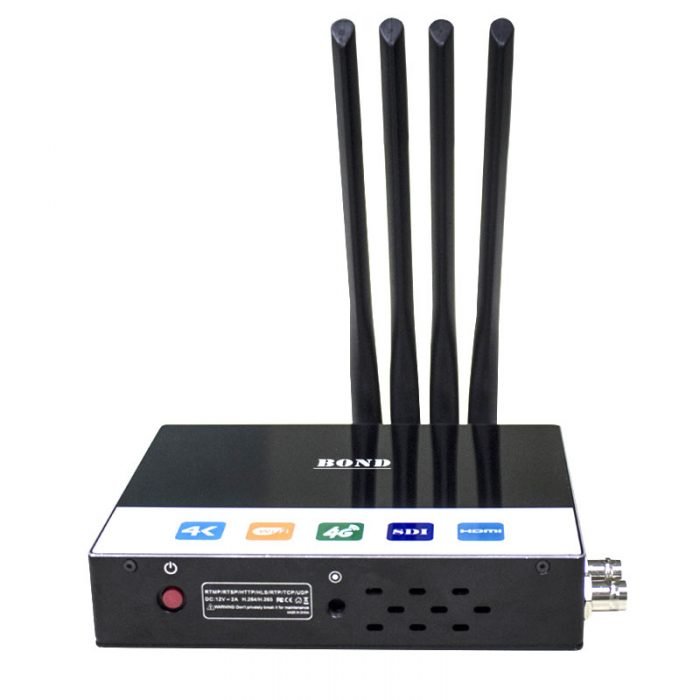

K8 4K Camera top encoder is an advanced bonding encoder that fully developed by GuangZhou JLonvision technology, it allows to transmit max 3840* 2160 30 FPS video over 3 aggregated Sim cards, support simultaneously output to three different platform over RTMP

    Category:

    Description

    K8 4G aggregation H.265 H.264 SDI Video Encoder is an advanced bonding encoder that fully developed by JLONvision, it allows to transmit max 3840* 2160 30 FPS video over 3 aggregated Sim cards, support simultaneously output to three different platform over RTMP (Main stream 2x4K, 2nd stream 1×1080), supports SRT,HTTP,RTSP, TCP,RTMP,RTMPE, UDP,Unicast, multicast,ONVIF,HLS protocols.

    K8 4G aggregation Video Encoder applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on BS configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.

    K8 4G aggregation H.265 H.264 SDI Video Encoder Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    K8 4G aggregation Video Encoder support timing recording and network storage.

    Technical Features

    • 3x4G-WIFI-Wired network optional
    • Standard camera base holder and lithium battery
    • Resolution support 3840×2160 30fps,1920x1080P,1920x1080i,1280x720p,720x576i,720x576P ,640x480i
    • Support H.265,H.264 Baseline profile,Main profile,High profile
    • Support stereo audio input for 2 channels, MP3,AAC,sampling frequency:32000,44100,48000 etc, Encoded audio bit rate:48K ,64K ,96K ,128K ,160K,192K ,256K
    • Support multiple computers to display background Settings page at the same time
    • Support ABR,CBR,VBR
    • Highest code rate 512Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • K8 4G LTE Bonding Encoder can use space pre-treatment and block filtering technology for moving scenes
    • K8 4G bonded SDI HEVC codec support wide area network remote management (WEB)
    • Support a variety of common platforms at home and abroad such as Wowza, FMS, youtube,facebook,NJ ,Darwin Server and so on



    Topology diagram of the overall scheme



    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 1x4K 30fps of image effect is more exquisite
    • Strong system stability
    • Low power supply design, can be battery powered, full can work for 2-3 hours
    • Multi-media platforms

    Software configuration picture

    Technical specification table

    K8 Product Parameter

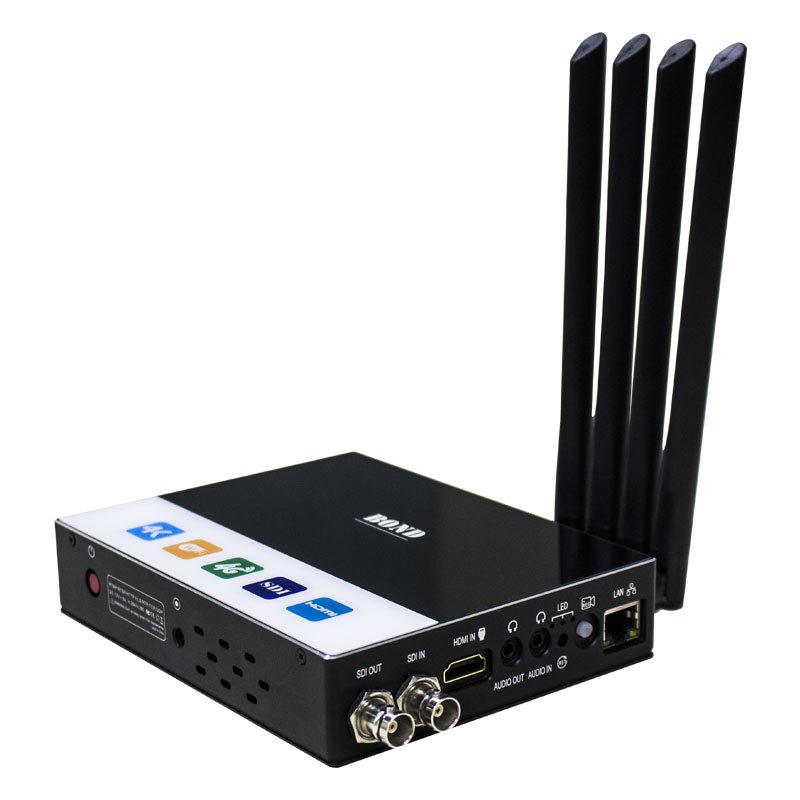

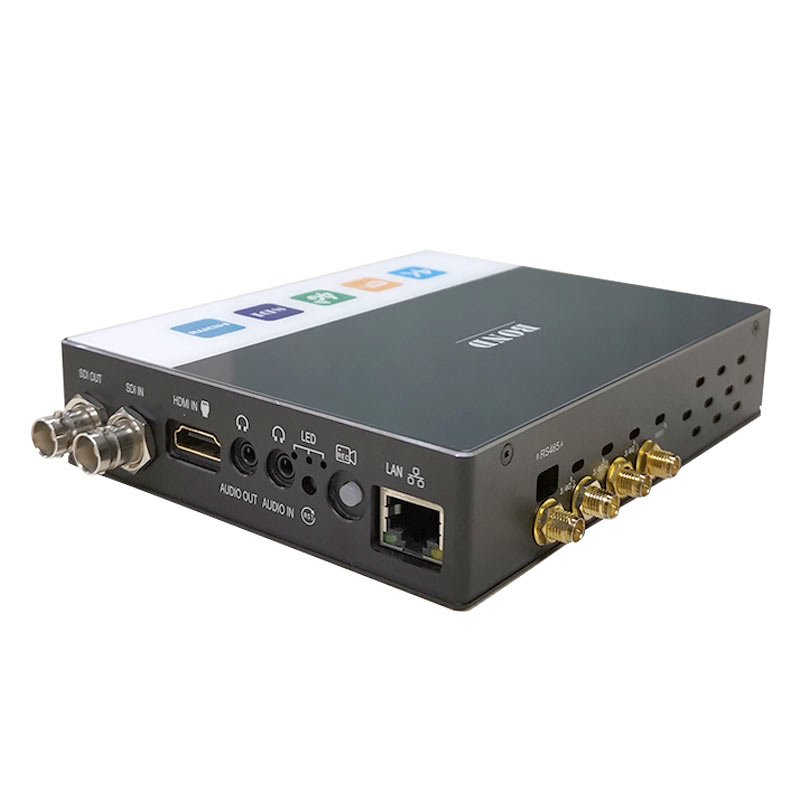

    Video parameter Input interface: 1xSDI,1xHDMI   output:1xSDI loop out

    Resolution: 3840×2160 30fps,1920x1080P,1920x1080i,1280x720p,720x576i,720x576P ,640x480i

    Coded format:  H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile H.265 Main 10 profile

    Coding resolution Main: 3840×2160 30fps,1920x1080P,1920x1080i,1280x720p,720x576i,720x576P ,640x480i

    Frame rate:3840×2160 30 fps ,1920×1080 60fps

    Maximum rate:512Mbps

    Rate control :ABR(Adaptive Bitrate Streaming),CBR,VBR

    Audio parameters Input interface:1×3.5mm,1xHDMI Audio,1xSDI embedded audio  output:1×3.5mm audio

    Stereo Sampling rate:48K,44.1K,32K

    Coded format:AAC,MP3,G.711

    Audio bit rate:64Kb/s-384Kb/s

    Network Parameters Internet:3xSIM card slot 4G,Network type:LTE-FDD,TD-LTE

    Lan interface: 1x100M-1000M RJ45 adaptive ethernet port,WIFI

    4G router:1 to 3 sim card bond 4g router (WIFI hot spot)

    RS485 Port:PELCO-D, PELCO-P

    Transport protocols :Http, Rtsp, Rtmp,Rtmps, UDP, Unicast, Multicast, HLS, RTP, P2P, ONVIF,SRT

    File Storage Memory interface:TF card  max 128G, providing (paid):SanDisk CLASS10 64G TF card

    Recording format:MP4,TS,FLV,MOV,MKV,AVI

    Basic parameter LED indicators: Green- Network, Yellow- streaming, Red- Power

    Power supply :DC 12V-2A

    Power dissipation:<8W

    Operating temperature:-20℃- +60℃

    Operating humidity:<90%,No condensation

    Encoder Size:150x118x30(mm)

    Package Size: 240x190x80 (mm)

    Rough Weight:2KG

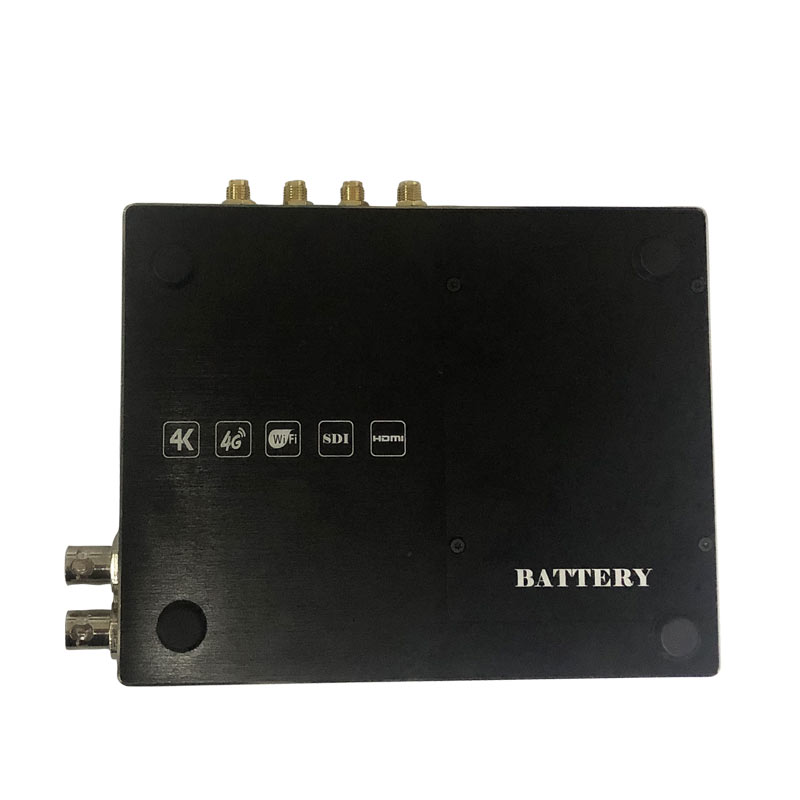

    Battery:7.4V 6000 MAH Li-polymer

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management

    Support mobile application configuration software

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Digital TV Broadcasting System , IPTV & OTT system , Internet TV , Digital Signage Project , Remote Video Conference
      Video Monitoring , Live Streaming , Digital TV Broadcasting System , Digital TV Programs Transmission
      Hotel IPTV System , Head-end system of Digital TV branch network , CATV Broadcasting system
      Edge side of Digital TV backbone network
