5G 4G lte srt HEVC encoder multi-link aggregation and cameras top srt codec is E5G live video streams output 4K 60fps

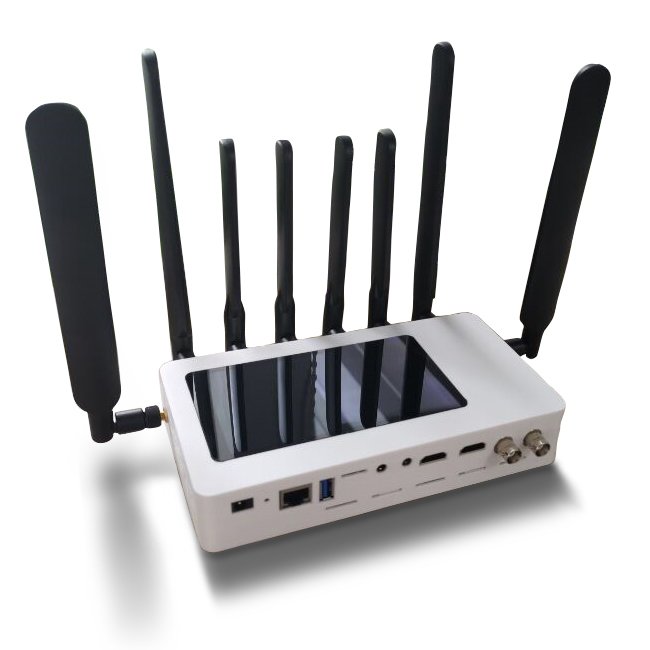

E5G 5G 4G lte srt HEVC encoder multi-link aggregation is a 1 channel of 4K 60fps and 1 channel SDI(1080P) h.265 Main profile embedded  hardware bonding encoder,E5G supports one 5G module and three 4G modules for mobile networks,It is also a 1 channel decoder and can be converted into a 2 channel IP transcoder. It applies H.265 and H 264 encoding standard (TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K 60fps H.265 video and stereo audio simultaneously.

    Categories: ,

    Description

    E5G 5G 4G lte srt HEVC encoder is a 1 channel of 4K 60fps and 1 channel SDI(1080P) h.265 Main profile embedded  hardware encoder,It is also a 1 channel decoder and can be converted into a 2 channel IP transcoder(As shown in figure 3.3). It applies H.265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K 60fps H.265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, E5G cameras top srt codec can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    E5G 5G 4G lte srt HEVC encoder applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on B,S configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.

    E5G cameras top srt codec supported audio encoding formats are AAC, MP3, PCMA,MPEG-2 etc, Support live stream protocol NDI,SRT,NDI,HTTP, HLS, RTSP, RTMPE,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    E5G 5G 4G lte srt HEVC encoder Support timing recording and network storage,It supports 2 channels real-time transcoding function.

    Technical Features

    • 5Gx1,4Gx3 socket,Embedded hardware encoder
    • H.265,H 264 Main profile
    • Video input format 4K 60fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Resolution 4K 60fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
    • Support one or multi – channel mixed video, so as to achieve the signal source monitoring function.
    • Support CBR,VBR,AVBR
    • Highest code rate 200Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • E5G 5G srt HEVC encoder can use space pre-treatment and block filtering technology for moving scenes
    • E5G cameras top srt codec can do the recording duringthe set time and save the recorded files in the
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as wowza, twich, youtube,facebook,NJ and so on



    Topology diagram of the overall scheme




    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 1x4K 60fps and 1xSDI(HD) of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture

    Technical Specification Table

    Product Parameter
    Key Performance CPU ARM Cortex A53 [email protected] 1.5GHz

    Internal storage 2GB DDR4

    Flash 128MB Nand Flash

    Video parameter Input interface 1xHDMI 2.0 Maximum support 4K 60fps,1x3G-SDI(1080P)

    Sensor Sony imax334 4K 30fps

    Signal source resolution 4K 60fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Coding format  H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H.265 Main profile
    MJPEG,JPEG Baseline

    Coding resolution 4K 60fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Frame rate 1-60 adjustable

    Decoding resolution 4K 60fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480

    Multiple reference frame SmartP,DualP

    Maximum bitrate 200Mbps

    Bitrate control  CBR,VBR,AVBR

    ROI supports 8-region ROI coding

    Audio parameters Input interface HDMI,Line-in 3.5mm,Line-out 3.5mm

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Mobile network 5Gx1,3X4G Multi-link aggregation

    Lan interface 10M,100M,1000M RJ45

    Wireless interface dual frequency wifi module

    Transport protocols SRT,NDI,RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast

    Support ONVIF

    Basic parameter Data interface 1xUSB 3.0 and 1xTFcard

    Power supply  DC 12V 1A

    Power dissipation <5W

    Operating temperature 0-70℃

    Size 175x100x18(mm LxWxH)

    package size 300*210*70(mm)

    Net weight 1.8KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication
