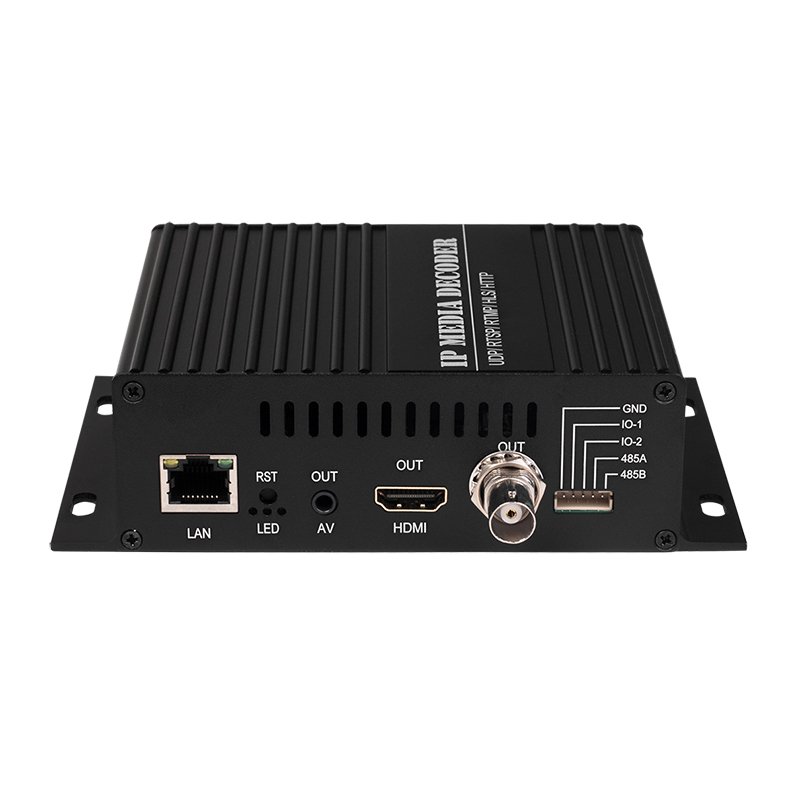

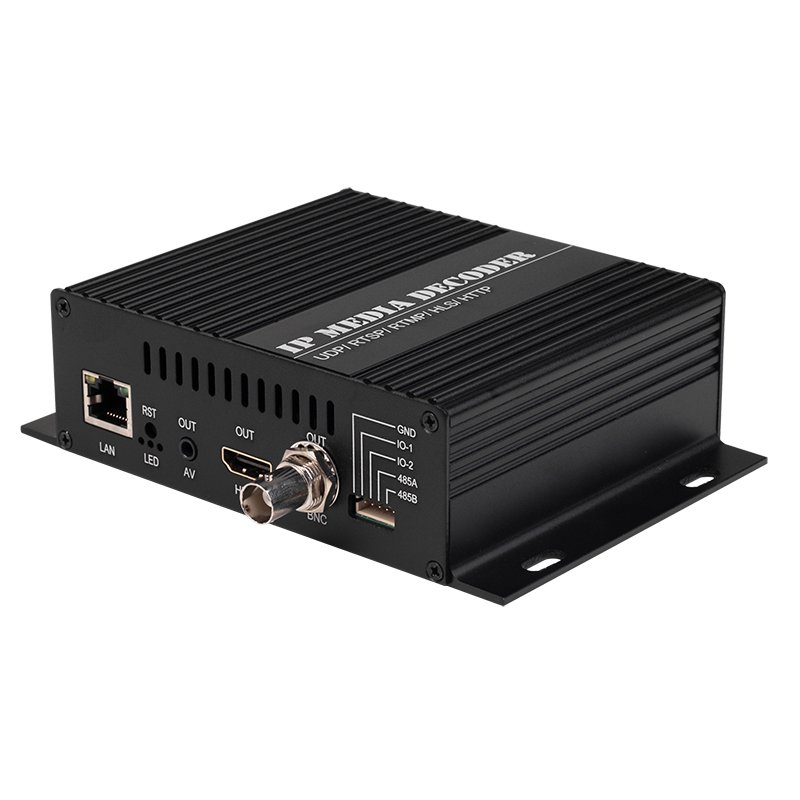

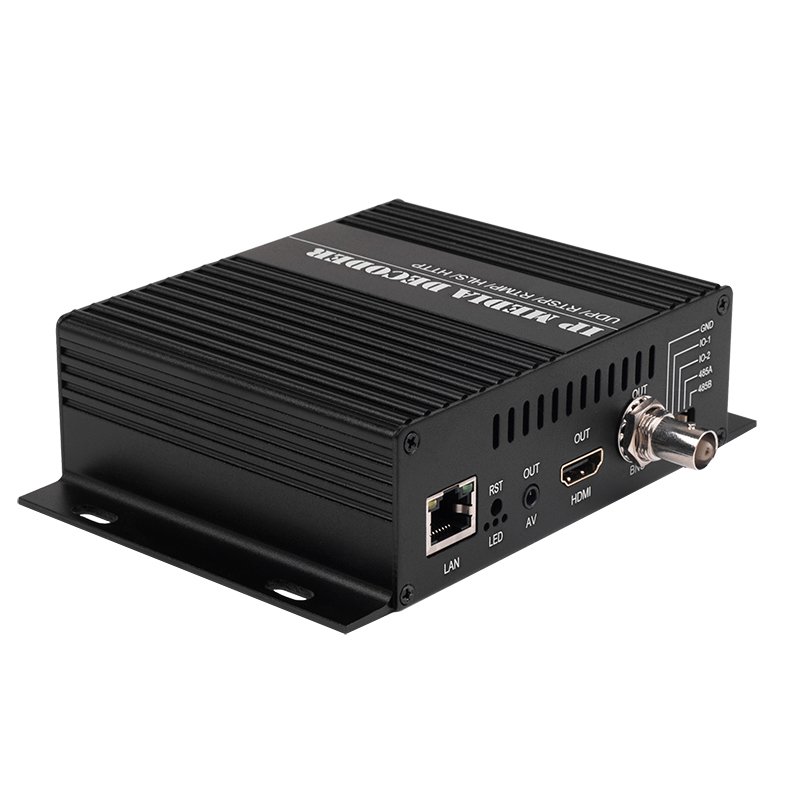

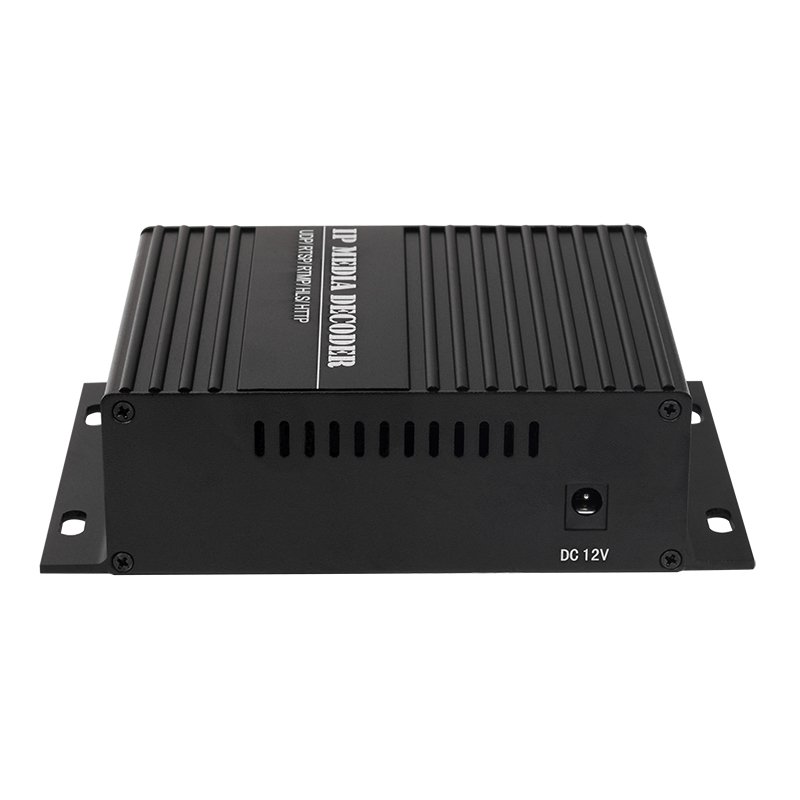

Hevc h265 video hardware decoder H9110D IPTV solution high efficiency video decoding best hardware media player

H9110D Hevc h265 video hardware decoder is professional hd audio and video decoding products. IPTV solutions include client devices such as set-top boxes, hardware decoders, mobile phones and computers. Focus on explaining the set-top box and hardware decoder, They work by converting the live video and audio streaming data packets of h 265,h 264 over the Internet into digital video signals through the decoding chip. this process we also called hardware decoding

    Description

    About streaming media video and audio hardware decoding technical description

    1. When we are streaming live video and audio over the Internet, in the IPTV solution, ENC2 can receive external (for example: live stream from a surveillance camera RTSP ://192.168.0.68:8080)  h 265,h 264 live streaming, after ENC2 hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to file that you want).(As shown in figure 1.1)

    2.IPTV solutions include client devices such as set-top boxes, hardware decoders, mobile phones and computers. Focus on explaining the set-top box and hardware decoder, They work by converting the live video and audio streaming data packets of h 265,h 264 over the Internet into digital video signals through the decoding chip. this process we also called hardware decoding (such as Decoder H9110D).(As shown in figure 1.2)

    H9110D Hevc h265 video hardware decoder is professional hd audio and video decoding products. This product has support 1 channel HDMI or CVBS video and audio output function. Decoding output 1 channel 1080P or 1 channel CVBS analog video, audio decoding support MP3,AAC format. H9110D Hevc h265 video hardware decoder Support RTSP,HTTP,udp,RTMP,HLS,RTP live streaming transmission protocol.Very convenient to use, plug in the network cable can be used, saving the trouble, and computer hardware compatibility problems do not exist.It requires a complete solution with IPTV headend ENC2 hevc h 265 hardware encoder.

    H9110D Hevc h265 video hardware decode applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on B S configuration structure; management and configuration are done by this web-page in the long–distance without being supervised by human.

    Technical Features

    • Embedded hardware decoding
    • Standard definition output supports HDMI 2.0 or BNC and 3.5 mm(2 choose 1)
    • Support a computer multiple devices use display at the same time
    • Support h. 264, h. 265 decoder output: 4K 60fps,1080P,720P,D1
    • Support RTSP,HTTP,udp,RTMP,HLS,RTP etc
    • Support multiple video splicing streams
    • Support display 1- 4 split screen output
    • Decoding specification BASELINE PROFILE,MAIN PROFILE,HIGH PROFILE
    • Support one-click restore default configuration
    • Low power supply design

    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 1*4K 60fps of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Parameter

    Product  model H9110D  HDMI+CVBS HD decoder
    Output 1 channel HDMI signal output, 1 channel CVBS signal output
    Input 1 channel IP signal input
    Video Output resolution 4K,1920×1080,1280×720,1600×1200,960×540,720*576,704*576 etc
    Decoding standard H.264,H.265
    Decoding level H.265 MAIN PROFILE

    H.264 BASELINE PROFILE

    H.264 MAIN PROFILE

    H.264 HIGH PROFILE

    Split screen display Can display 1, 4 split screen output
    Decodable protocol Intrant http,rtsp,udp, outer net rtmp,Hyperlink protocol
    Audio output option 1 channel hdmi embedded audio, 1 channel 3.5 audio
    audio coding AAC,MP3
    IP input 100M or 1000M adaptive Ethernet port*1
    System configuration management Support IE configuration, remote upgrade
    Others power 12V-2A
    power dissipation 5W
    Size 100mm x 118mm x 40mm(LxWxH)
    operating temperature -20℃+ 60℃
    operating humidity <90%,No condensation
    weight 0.3KG
    We reserve the right to adjust the product parameters. If you have any questions, please contact us

    Application Range

    • Digital TV Broadcasting System / IPTV & OTT system / Internet TV / Digital Signage Project / Remote Video Conference
      Video Monitoring / Live Streaming / Digital TV Broadcasting System / Digital TV Programs Transmission
      Hotel IPTV System / Head-end system of Digital TV branch network / CATV Broadcasting system
      Edge side of Digital TV backbone network
