cctv convert rtsp to rtmp on nginx with Gateway100 Dahua or Hikvision IP Camera IPC transcoder

Convert rtsp to rtmp on nginx with Gateway100 IP Camera IPC transcoder

    Categories: ,

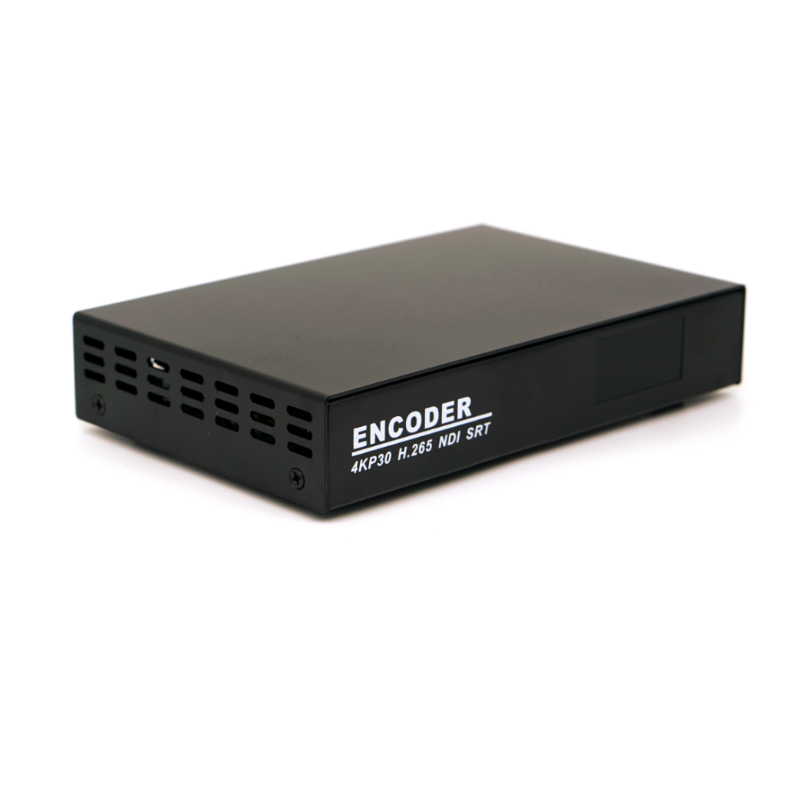

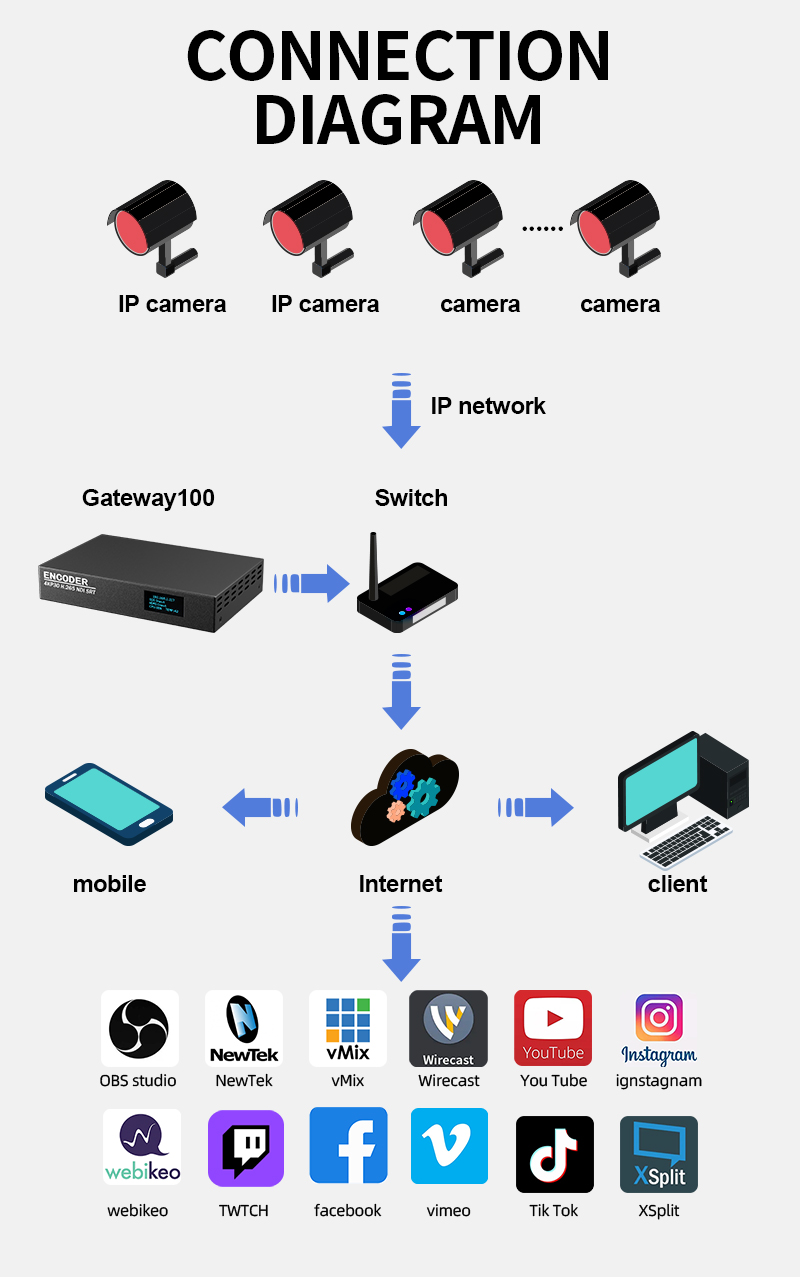

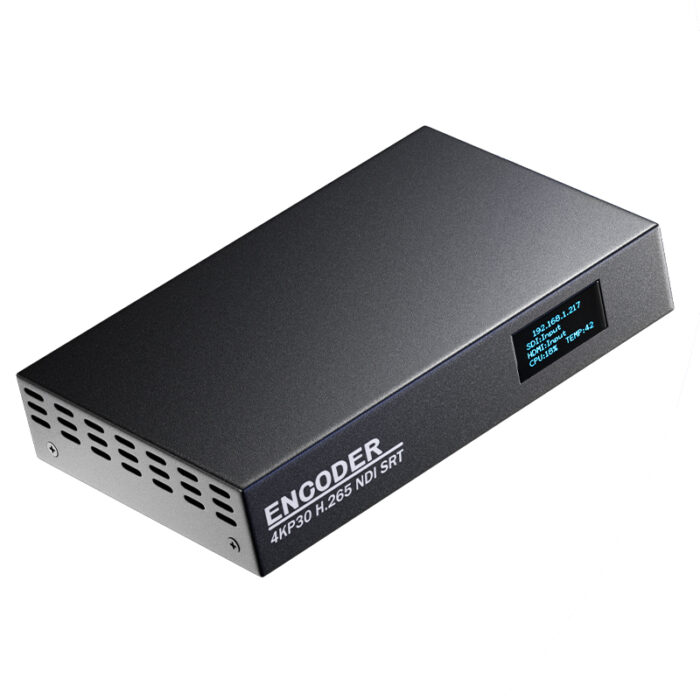

    Gateway100 cctv convert rtsp to rtmp is a professional converter that converts the RTSP live stream of IP webcam into RTMP URL through IP network. It supports the secondary encoding of up to 4xIP cameras (1080P) at the same time and outputs the RTMP push stream function. Gateway100 is mainly aimed at the IP webcam equipment of the main chip of Hays. So it works for brands with high market share, such as webcams like Dahua and Hikvision.


    -SOC chip ensures the stable operation of the system 7×24 hours

    -The core function supports the mixed reincarnation of files/signal sources and other contents, making the live broadcast of scenic spots more intelligent

    -Support to customize the background music of live video stream in tourist areas

    -Converter built-in FRP function, users can be remote unified management

    -Support at the same time push the flow to youtube/facebook/twich/wowza media platform in the flow of more than 20

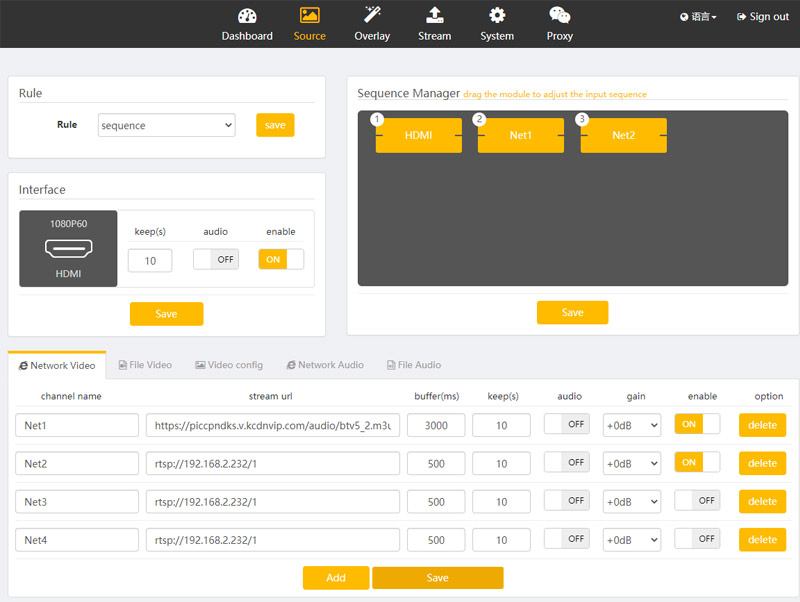

    Software configuration picture

    Technical Specification Table

    Product Parameter
    Key Performance CPU:ARM Cortex-A7@ 1.3GHz

    Internal storage:512MB DDR3

    Flash:256MB SPI Nand Flash

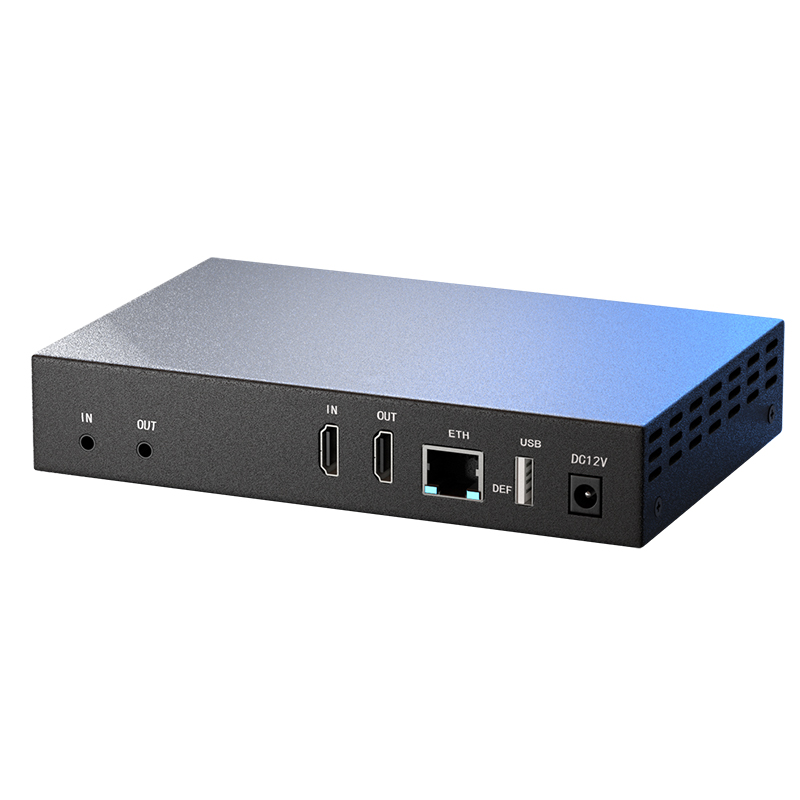

    Video parameter Input interface HDMI 1.4 x1(4K,30fps)

    Signal source resolution 3840×2160 30fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Coded format   H.264 Baseline profile
    H 264 Main profile
    H 264 High profile
    H 265 Main profile
    MJPEG JPEG Baseline

    Coding and decoding resolution  3860×2160 30fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Sub 720P,360P

    Frame rate 1-60 adjustable

    Multiple reference frame SmartP,DualP

    Maximum bitrate 40Mbps

    Rate control CBR,VBR,AVBR

    Audio parameters Input interface:HDMI,3.5mm Line-in( Audio can be used simultaneously)

    Output interface:HDMI,3.5mm Line-out( Audio can be used simultaneously)

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10M,100M,1000M RJ45

    Transport protocols  SRT,RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast

    ONVIF positive

    File Storage Memory interface USB 3.0

    Recording format MP4,TS,FLV,MOV,MKV,AVI

    Basic parameter Power supply  DC 12V 2A

    Power dissipation <5W

    Operating temperature 0-70℃

    Size 170x110x32(mm)

    package size 275x175x52(mm)

    Net weight 0.7KG

    Gross weight 0.73KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

    Password management

    Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication
