NDI to SDI, HDMI to NDI, SDI to NDI Converters 10bit video streams FPGA Full ndi encoder

NDI-1  SDI to NDI Converters, and best way to get video into IP workflows. it delivers the groundbreaking benefits of NDI®, NewTek’s innovative Network Device Interface technology. It captures any HDMI/SDI video source and convert it to IP. It not only guarantees the quality of the video, but also guarantees the ultra-low delay of the live video stream.

    Category:

    Description

    NDI-1  SDI to NDI Converters, and best way to get video into IP workflows. it delivers the groundbreaking benefits of NDI®, NewTek’s innovative Network Device Interface technology. It captures any HDMI/SDI video source and convert it to IP. It not only guarantees the quality of the video, but also guarantees the ultra-low delay of the live video stream.

    Ndi-1 SDI to NDI Converters supports up to 4Kp30 (UHD) video resolution and is downward compatible with SD/HD/VESA resolution and other special resolutions. Ycbcr4:2:2 NDI high quality coding ensures excellent picture quality, lossless audio coding ensures high fidelity sound quality: ultra-low delay, end-to-end delay less than 100ms through accurate clock and intelligent algorithms, ensure video frame synchronization, as well as accurate picture and audio synchronization.

    Advantages

    NDI® Output Deliver any digital video source to the network in full HD, with high-efficiency NDI® output via FULL NDI and native support for resolutions up to 2160p.

    NDI® Virtual Input Designate NDI-1 Full NDI encoder as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom,Vmix and more using the free NDI® Virtual Input* tool. (* NDI Virtual Input included with the free NewTek NDI Tools download.)

    Web-Based Interface Monitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.

    Network Visibility Access devices connected to other networks via IP address and make them visible within your production environment using NDI Access Manager.

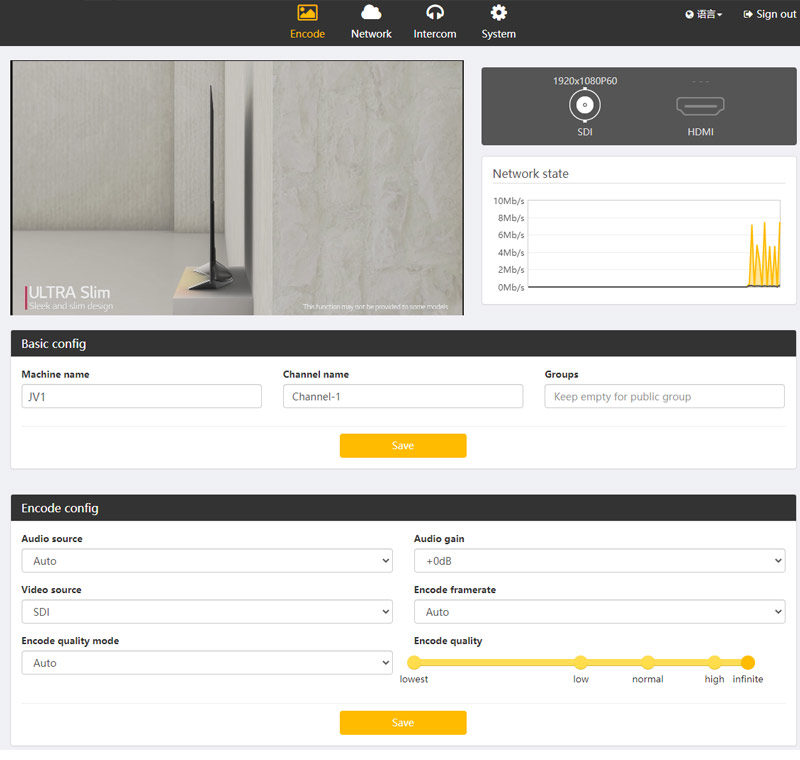

    Software configuration picture

    Technical Specification Table

    Product Parameter

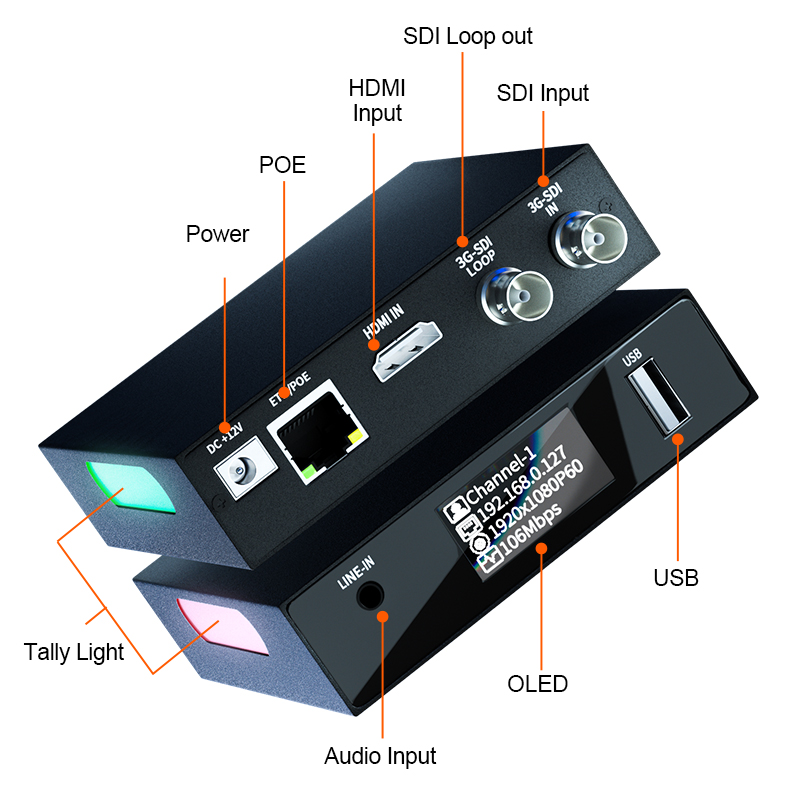

    Video and Audio parameter Input

    -HDMI 1.4 x1 Maximum [email protected]

    -3G-SDI x1

    -3.5mm line in x1

    Output

    -3G-SDI Loop out x1

    Signal source resolution:[email protected],1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480

    Frame rate 25-60 adjustable

    Maximum rate 140Mbps

    Audio gain -12DB-+12DB

    PTZ control

    Software parameters NDI version NDI 5

    NDI mode FULL NDI

    Network protocol Discovery,RUDP,TCP,Unicast, Multicast

    OLED screen: NDI Name /IP/ Resolution

    Tally: two-way LED red-green highlighter light

    Integrated call: compatible with a full range of encoder products for two-way voice call system.

    Network Parameters Lan interface 1000M RJ45

    POE Supports POE power supply

    The USB2.0 can expand the calling system or serial port

    Basic parameter Power supply  DC 12V 1A

    Power dissipation <5W

    Operating temperature -20-50℃

    Size 100x94x24(mm)

    package size 200x170x52(mm)

    Net weight 0.35KG

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

    Password management

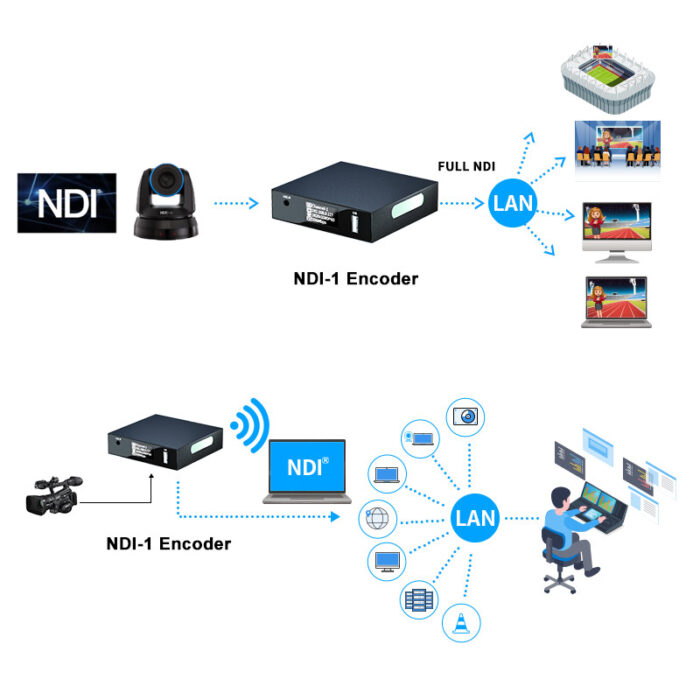

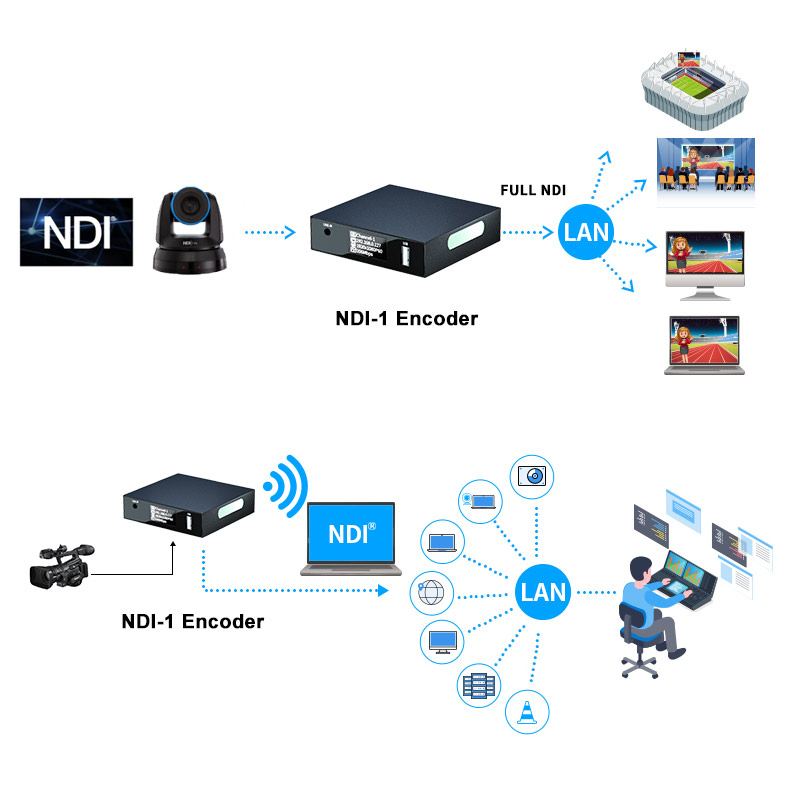

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication

    NDI is a registered trademark of Newtek

    How To Buy

    Payment

    Generally, we accept the following payment methods: TT / PayPal(need 4.5% commission charge) / western union. If you have any question about the payment, please feel free to contact us.

    Shipment

    1. We will send the items within 2-5days (working days, Not holiday seasons)after the payment is confirmed
    2. We can provide EMS, TNT, Fedex, DHL, UPS and so on. If you need the item urgently, please contact us for express shipping. We will calculate the express shipping cost for you.
    3. When you receive the items you ordered, please check it carefully in 24 hours. Please contact us directly if you have any problems.
    4. If you have not got it within the shipping time, please contact us without hesitation. We will check it for you with the post office and customs.

    After-sales

    1. All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen during the guarantee period. Our company provides remote technical with TeamViewer and accessories for free. If you are caught in some problems when using our products, welcome to contact us at any time.
    2. Free software upgrade ,pls contacts us. Alter- Sales: [email protected]
