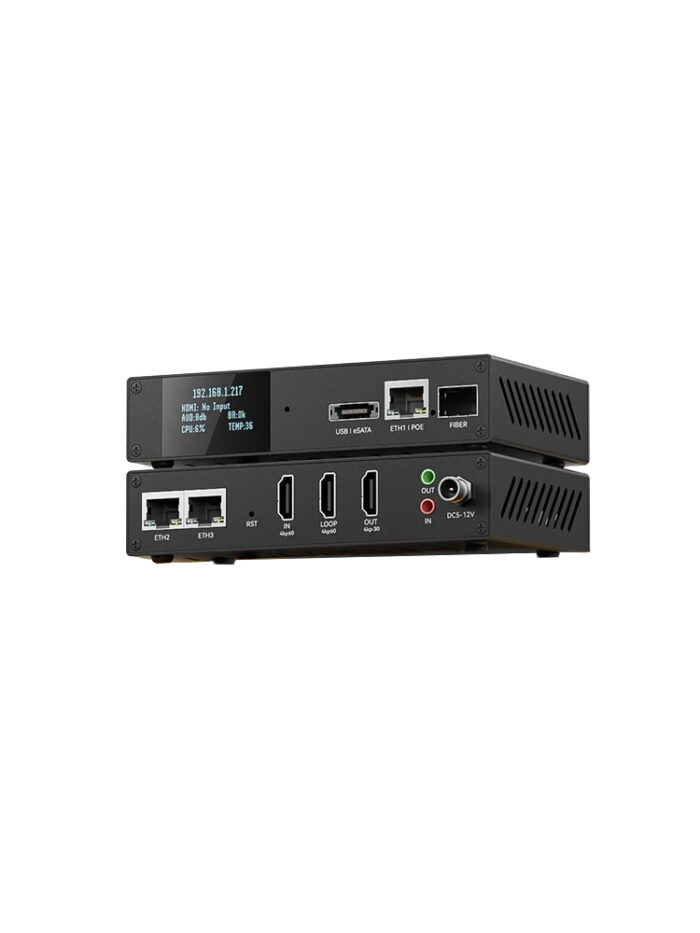

REC1 is an 4K video codec supporting HDMI2.0 interface. The core function supports 1 channel 4K30fps video and audio coding and decoding, and the decoding output can also be set to ring output dual function. The whole body of REC1 is relatively small, and we have hot boot interface in the design.

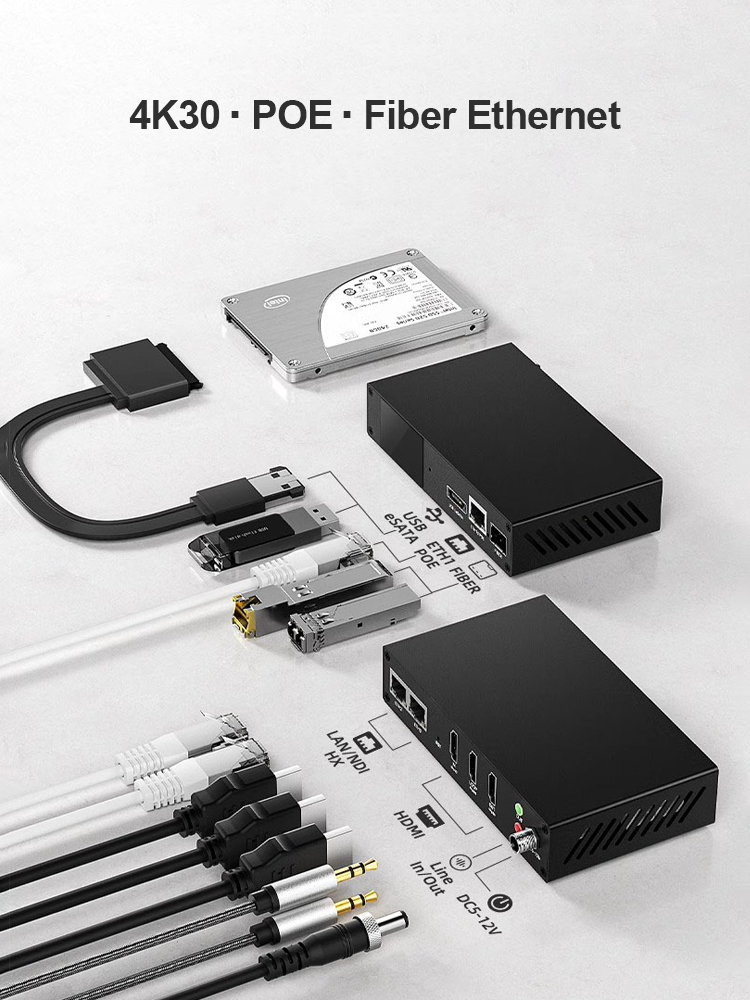

4K Hardware Video Encoder with POE & Fiber Ports – Professional H.265/H.264 Encoding, Ultra-Low Latency for Live Streaming & IP Surveillance Systems
Description

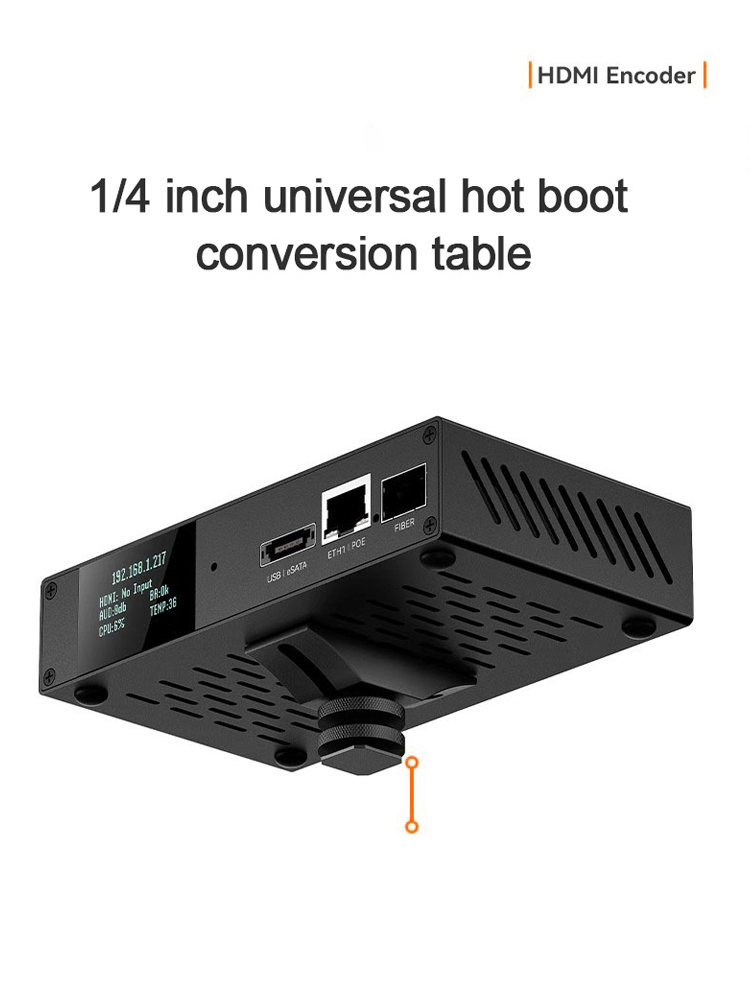

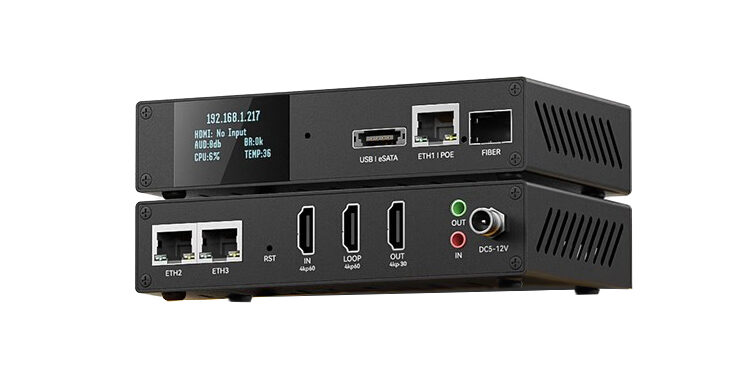

REC1 is an 4K video codec supporting HDMI interface. The core function supports 1 channel 4K video and audio coding and decoding, and the decoding output can also be set to ring output dual function. The whole body of REC1 is relatively small, and we have also added the Tally signal light and hot boot interface in the design.
Here is a comparison table of parameters of REC1 products of the same type
| Product |
REC1 |
ENC1-V3 |
|---|---|---|
| Core Chip | 22AP10 | 22AP10 |
| HDMI IN | 4K 30fps | 4K 30fps |
| HDMI OUT | 4K 30fps | 4K 30fps |
| Audio | 3.5mm input/output | 3.5mm input/output |
| Maximum coding capacity(Note 1) | 1080P 30fps x 4 | 1080P 30fps x 4 |
| Decoding capability(Note 1) | 1080P 30fps x 4 | 1080P 30fps x 4 |
| Network | 1000M Ethernet x3 + fiber port | 100M Ethernet |
| POE(PD) | √ | Χ |
| USB | 1 | USB2.0 x 3 |
| eSata | 1 | 1 |
Note 1:The encoding/decoding processing power is based on 1080P30 as a reference unit and can be converted to other frame rates or resolutions such as 1080P30x2≈1080P60, 1080P30x4≈4K30, and so on.
REC1 UI has also been updated with another style, which I think is more user-friendly.
Technical Features
- Embedded hardware encoder
- H 265,H 264 Main profile
- Signal source resolution 3840×2160 60fps,1080P,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Audio output format AAC,MP3,PCMA,MPEG-2
- Decoder Resolution: 3840×2160 30fps,1080P,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support CBR,VBR,AVBR,FIXQP,QPMAP
- Highest codec bitrate 20Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- REC1 can use space pre-treatment and block filtering technology for moving scenes
- REC1 can do the recording during the set time and save the recorded files in the networks.
- With dongle function, Monitor safe operation
- Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on

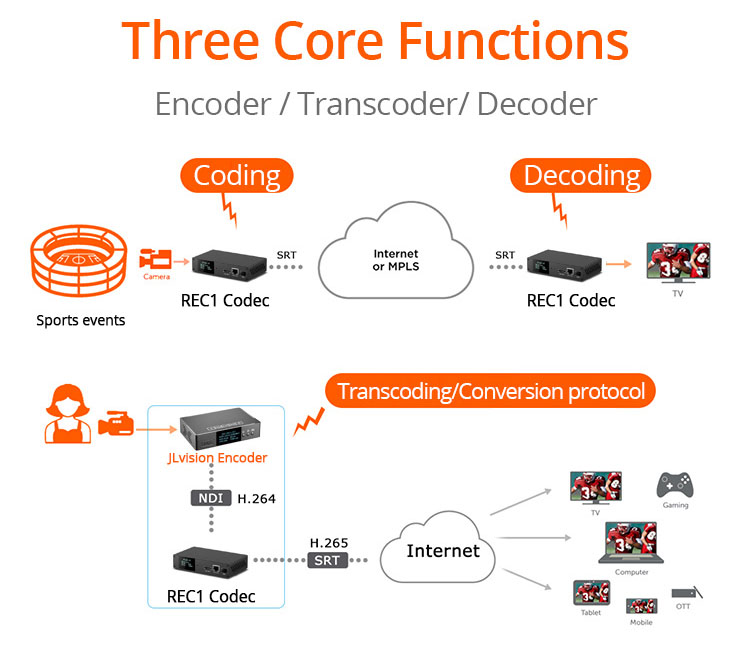

Topology diagram of the overall scheme
Product Advantages
- SOC chip is even more powerful
- Mini design is easy to carry
- 4K30fps of image effect is more exquisite
- Strong system stability
- Low cost of maintenance
- 7×24 non-stoping work
- Multi-media platforms
Software configuration picture
Technical Specification Table
| Product Parameter | |
|---|---|
| Key Performance | CPU:ARM Cortex-A7 [email protected],32KB I-Cache,32KB D-Cache
Internal storage:2GB DDR4 Flash:8GB eMMC |
| Video parameter | Input interface HDMI2.0 Maximum support 4K 60fps
Output interface HDMI2.0 Maximum support 4K 60fps Signal source resolution:3860×2160 60fps,4K30,1080P,1080i,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Coded format Decoder resolution:3860×2160 60fps,4K30,1080P,1080i,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Frame rate 1-60fps adjustable Maximum coding capacity 4K30x1/1080P30x4 Maximum bitrate 20Mbps |
| Audio parameters | Input interface:HDMI Maximum 48K,3.5mm stereo Output interface:HDMI Maximum 48K,3.5mm stereo Sampling bitrate 48K,44.1K,32K,16K,8KCoded format AAC,MP3,MPEG2,PMCA,OPUS |
| Network Parameters | Lan interface 1000M RJ45 Ethernet x3 + SFP
Extensible USB wifi Extensible USB 4G/5G module(4G—E8372h,MF833U1 5G—F50,5GCPE) Transport protocols SRT,RTSP,RTMP,RTMPE,RTMPS,HTTP,HLS,UDP,unicast,multicast,NDI HX(Optional) ONVIF positive |
| File storage | Storage interface -USB, eSata built-in storage space (about 6G can be used)
File recording formats -MP4,TS,FLV,MOV,MKV,AVI |
| Basic parameter | LCD display displays the working status

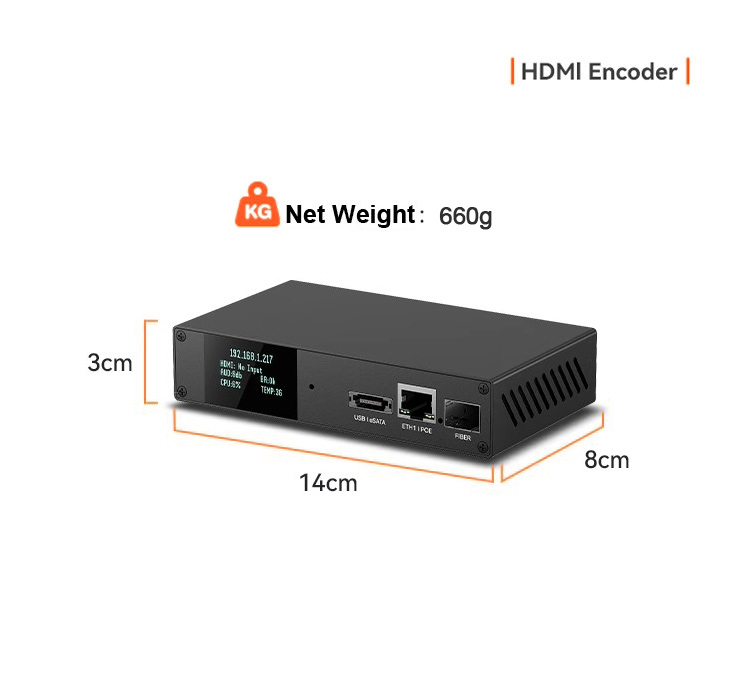

Support Tally light and working status display dual side lights Power supply DC 12V 1A Power dissipation <5W Operating temperature 0-70℃ Size 132x82x29(mm LxWxH) package size 200x170x52(mm) Net weight 0.66KG |
| Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,
Password management Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |

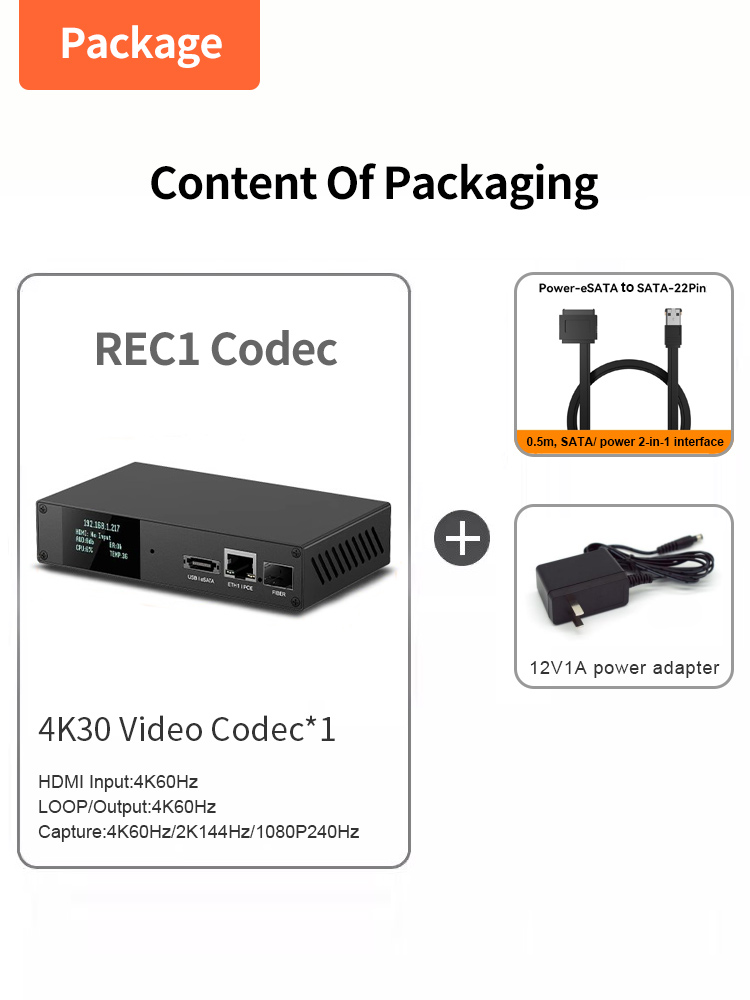

Package content
Application Range
- Network video and audio broadcast based on IP protocol.
- Suitable for all kinds of video conference software developers, system developers to do the acquisition end
- Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
- Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
- Applicable to video live broadcast business of government, media industry and other portal websites
- Suitable for remote monitoring in public places and important monitoring areas
- Suitable for remote monitoring of military exercises and two-way audio-visual communication
